  • ÆßÇÁ»ê¾÷¿ë ÆßÇÁ

ÀÔÇü ¹è¼ö ÆßÇÁ

¼³°è ¹× ±¸Á¶Àû Ư¡
1. ÁÖ¹° º£µå ä¿ëÀ¸·Î Áøµ¿À» ±Ø¼ÒÈ­ ÇÏ¿´½À´Ï´Ù.
2. ±¸Á¶°¡ °£´ÜÇÏ¿© À¯Áö, º¸¼ö°¡ Æí¸®ÇÕ´Ï´Ù.
3. PIT¿¡ PUMP°¡ °íÁ¤µÈ »óÅ·ΠÀÖ¾î BALL º£¾î¸µÀ» ½±°Ô ±³Ã¼ÇÒ ¼ö ÀÖ´Â ±¸Á¶·Î ¼³°èµÇ¾î ÀÖ½À´Ï´Ù.
¿ëµµ ¹× Àû¿ëºÐ¾ß
  • SUMP 󸮹° À̼ۿë
  • ½½·¯Áö À̼ۿë
  • Çϼö 󸮿ë
  • ÀÏ¹Ý Æó¼ö 󸮿ë
  • °øÀå Æó¼ö 󸮿ë
  • È­ÇÐ Ç÷£Æ®¿ë
  • ½ÄÇ° Æó±â¹° ó¸®Àå
  • ¿À¼ö¿ë
COLUMN ±æÀÌ
  • 800mm, 1000mm, 1200mm, 1500mm, 2000mm, 2500mm

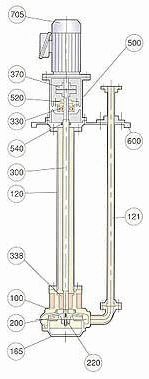

Á¶¸³ ´Ü¸éµµ

NO.

PART

STANDARD MATERIAL

Q' TY

100

CASING

GC200

1

120

SUCTION PIPE

SPP

1

121

DISCHARGE PIPE

SPP

1

165

STRAINER

GC200

1

200

IMPELLER

GC200

1

220

IMPELLER NUT

SM45C

1

300

SHAFT

SM45C

1

330

BALL B/R

STB

1

338

BUSHING

NBR

1

370

COUPLING

GC200

1

500

BRACKET

GC200

1

520

B/P COVER

GC200

1

540

OIL SEAL

NBR

1

600

BASE

GC200

1

705

MOTOR



1

ÇϺΠBUSHING(JOURNAL BEARING)Àº ¿¬ÀÔ Ã»µ¿ ÁÖ¹° (PbBrC4)·Îµµ ´ëÀÀ °¡´ÉÇÕ´Ï´Ù.

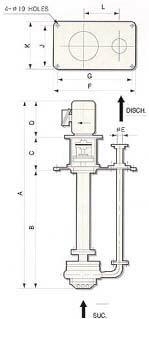

¿ÜÇü Ä¡¼ö

ÆßÇÁ HEADºÎ

(´ÜÀ§ : mm)

MODEL

µ¿·Â(KW)

A

B

C

D

E

WT(kg)

PVV-50B

0.75

1660

1200

225

235

50

78

1.5

1700

1200

225

275

50

85

PVV-50C

1.5

1700

1200

225

275

50

89

2.2

1720

1200

225

295

50

103

PVV-50D

2.2

1770

1200

275

295

50

133

3.7

1785

1200

275

310

50

142

PVV-65C

2.2

1720

1200

225

295

65

105

3.7

1735

1200

225

310

65

114

PVV-80C

3.7

1785

1200

275

310

80

140

5.5

1835

1200

275

360

80

161

PVV-80D

5.5

1891

1200

309

382

80

180

7.5

2002

1200

309

420

80

200

*Üâ DATA´Â COLUMN LENGTH 1,200mm ±âÁØÀÓ.


BEDºÎ

(´ÜÀ§ : mm)

MODEL

F

G

J

K

L

PVV-50B

450

410

240

280

210

PVV-50C

450

410

260

300

210

PVV-50D

500

460

290

330

240

PVV-65C

450

410

260

300

210

PVV-80C

500

460

290

330

240

PVV-80D

640

570

440

480

290

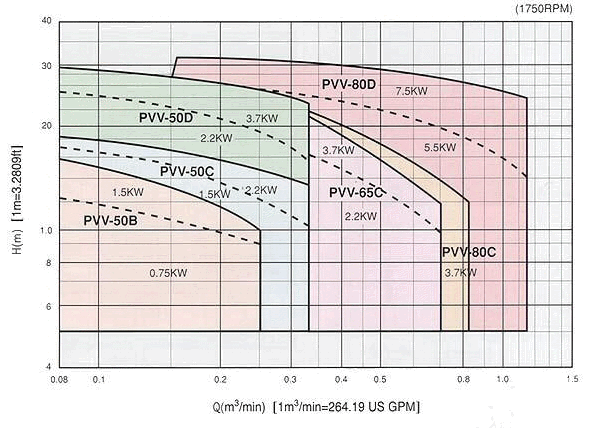

¼±Á¤µµ

»ç¾ç

NO.

PUMP TYPE

PUMP TYPE

REMARK

CAPACITY

HEAD

POWER

m3/min

M

KW

1

PVV-50B

0.2

10

0.75



0.2

12

1.5

2

PVV-50C

0.25

12

1.5



0.25

15

2.2

3

PVV-50D

0.25

17

2.2



0.25

24

3.7

4

PVV-65C

0.4

14

2.2



0.4

16

3.7

5

PVV-80C

0.7

14

3.7



6

PVV-80D

0.7

24

5.5



0.7

28

7.5
