D.C MOTOR

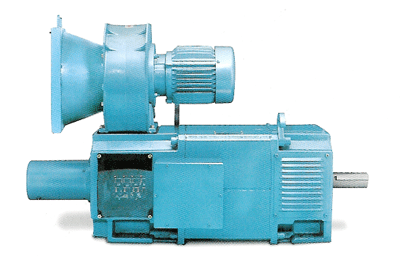

45KW/55KW/75KW/90KW/110KW Separately Excited HORIZONTAL TYPE

MES200E TYPE Out Put : 110 KW Armature(Voltage) : 440V Field(Voltage) : 180V Excited : separately Excited Poles : 4P Speed : 1750RPM Rating : Continue Protection & Cooling : IP23/ICO6

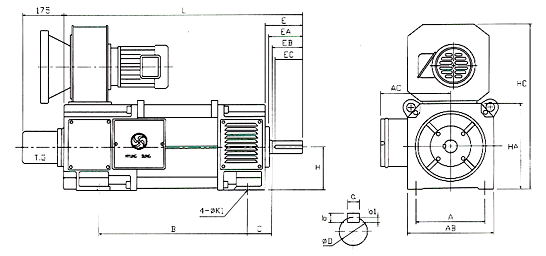

OUTLINE DIMENSIONS

TYPE OUT PUT(KW) A AB AC B C ØD E EA EB EC H HA HC ØK1 L KEY aXbXb1 APPROX WT.<kg> Blower Motor MES200V 45 325 396 330 540 101 65 161 146 140 120 200 398 715 20 930 18×11×7.0 430 1.5Kw-2p MES200S 55 325 396 330 565 101 65 161 146 140 120 200 398 715 20 955 18×11×7.0 470 1.5Kw-2p MES200M 75 325 396 330 615 101 65 161 146 140 120 200 398 715 20 1005 18×11×7.0 520 1.5Kw-2p MES200L 90 325 396 330 660 101 65 161 146 140 120 200 398 715 20 1050 18×11×7.0 580 1.5Kw-2p MES200E 110 325 396 330 710 101 65 161 146 140 120 200 398 715 20 1100 18×11×7.0 670 2.2Kw-2p

SPECIFICATIONS

TYPE OUTPUT (KW) POLES (P) ARMATURE FIELD VOLTAGE(V) SPEED (RPM) TORQUE (kg-m) RATING BEARING (PL/OPL) INS. CLASS VOLTAGE(V) CURRENT(A) MES200V 45 4 220/380/440 232/134/116 180 1750 25.04 CONT. 6314zz/6311zz F MES200S 55 4 220/380/440 280/162/140 180 1750 30.61 CONT. 6314zz/6311zz F MES200M 75 4 220/380/440 378/218/189 180 1750 41.74 CONT. 6314zz/6311zz F MES200L 90 4 380/440 260/225 180 1750 50.09 CONT. 6314zz/6311zz F MES200E 110 4 380/440 316/273 180 1750 61.22 CONT. 6314zz/6311zz F
