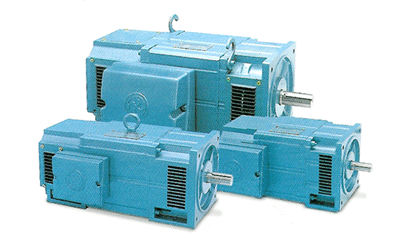

D.C MOTOR

0.2KW/0.4KW/0.75KW/1.5KW/2.2KW/3.7KW/5.5KW
Separately Excited
HORIZONTAL/VERTICAL(FLANGE)TYPE

MSS112M TYPE
  Out Put : 5.5KW
  Armature(voltage) : 220V
  Field(Voltage) : 180V
  Excited:Separately Excited
  Poles : 2P
  Speed : 1750RPM
  Rating : Continue
  Protection & Cooling:
  IP23/ICO1

MSS090M TYPE
  Out Put : 2.2KW
  Armature(voltage) : 180V
  Field(Voltage) : 90V
  Excited : separately Excited
  Poles : 2P
  Speed : 1750RPM
  Rating : Continue
  Protection & Cooling :
  IP23/ICO1

MSS080TYPE
  Out Put : 0.75KW
  Armature(voltage) : 180V
  Field(Voltage) : 90V
  Excited : separately Excited
  Poles : 2P

Speed : 1750RPM
Rating : Continue
Protection & Cooling :
IP23/ICO1

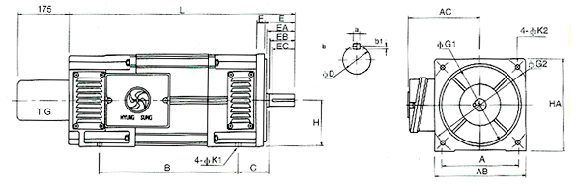

OUTLINE DIMENSIONS

TYPE	OUT PUT(KW)	A	AB	AC	B	C	ØD	E	EA	EB	EC	F	ØG1	ØG2	H	HA	ØK1	ØK2	L	KEY aXbXb1	APPROX WT.<kg>
MSS070S	0.2	110	127	116	139	37	16	39	36	35	32	10	115	152	70	134	9	7	261	5×5×3.0	10
MSS070M	0.4	110	127	116	164	37	16	39	36	35	32	10	115	152	70	134	9	7	286	5×5×3.0	12
MSS080M	0.75	125	150	125	180	50	19	47	44	40	35	12	130	175	80	155	9	9	336	6×6×3.5	21
MSS090S	1.5	150	178	140	260	56	24	56	53	50	45	17	160	207	90	179	10	9	430	8×7×4.0	36
MSS090M	2.2	150	178	140	285	56	24	56	53	50	45	17	160	207	90	179	10	9	455	8×7×4.0	40
MSS112S	3.7	190	222	215	277	58	32	78	75	70	65	17	200	255	113	224	11	11	504	10×8×5.0	73
MSS112M	5.5	190	222	215	317	58	32	78	75	70	65	17	200	255	113	224	11	11	544	10×8×5.0	87

SPECIFICATIONS

TYPE	OUTPUT (KW)	POLES (P)	ARMATURE		FIELD VOLTAGE(V)	SPEED (RPM)	TORQUE (kg-m)	RATING	BEARING (PL/OPL)	INS. CLASS
TYPE	OUTPUT (KW)	POLES (P)	VOLTAGE(V)	CURRENT(A)	FIELD VOLTAGE(V)	SPEED (RPM)	TORQUE (kg-m)	RATING	BEARING (PL/OPL)	INS. CLASS
MSS070S	0.2	2	180	1.4	90	1750	0.112	CONT.	6203zz/6202zz	F
MSS070M	0.4	2	180	2.8	90	1750	0.224	CONT.	6203zz/6202zz	F
MSS080M	0.75	2	180	5.3	90	1750	0.417	CONT.	6204zz/6303zz	F
MSS090S	1.5	2	180	10.5	90	1750	0.834	CONT.	6305zz/6304zz	F
MSS090M	2.2	2	180	15.4	90	1750	1.223	CONT.	6305zz/6304zz	F
MSS112S	3.7	2	220	21	180	1750	2.059	CONT.	6207zz/6305zz	F
MSS112M	5.5	2	220	30	180	1750	3.06	CONT.	6207zz/6305zz	F
