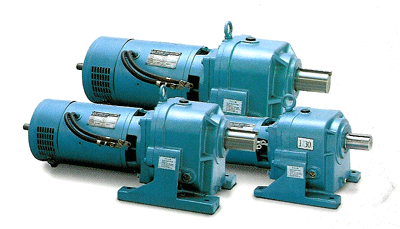

D.C BATTERY GEARED MOTOR

0.75KW/1.5KW/2.2KW/3.7KW/5.5KW
Series wound
HORIZONTAL TYPE

GSR116M TYPE
  Out Put : 5.5 KW
  Voltage : 48V
  Excited : Series Wound
  Poles : 4P
  Speed : 1750RPM
  Reduced Ratio : 1/5～1/30
  Rating : 1Hour
  Protection & Cooling :
  IP00/IC01

GSR093M TYPE
  Out Put : 2.2KW
  Voltage : 24V
  Excited : Series Wound
  Poles : 4P
  Speed : 1750RPM
  Reduced Ratio : 1/5～1/60
  Rating : 1Hour
  Protection & Cooling :
  IP00/IC01

GSR070S TYPE
  Out Put : 0.75 KW
  Voltage : 24V
  Excited : Series Wound
  Poles : 4P

  Speed : 1750RPM
  Reduced Ratio : 1/5～1/60
  Rating : 1Hour
  Protection & Cooling :
  IP00/IC01

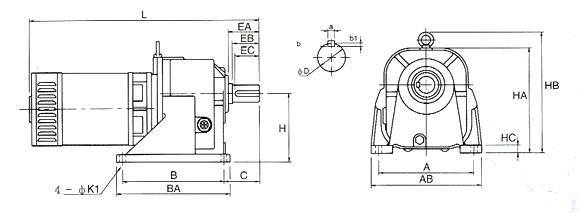

OUTLINE DIMENSIONS

TYPE	OUT PUT(KW)	A	AB	B	BA	C	ØD	EA	EB	EC	H	HA	HB	HC	ØK1	L	KEY aXbXb1	APPROX WT.<kg>
GSR070S	0.75	185	220	200	230	72	38	65	60	55	143	213	247	18	13	522	10×10×6.0	40
GSR093S	1.5	210	260	212	252	104	50	88	80	75	160	245	279	23	13	621	16×10×6.0	72
GSR093M	2.2	210	260	212	252	104	50	88	80	75	160	245	279	23	13	641	16×10×6.0	76
GSR116S	1/30 3.7 1/60	310	360	330	370	116	55 60	100	87 90	82 85	220	339	390	25	20	749	16×10×6.0 18×11×7.0	152
GSR116M	5.5	310	360	330	370	116	60	100	90	85	220	339	390	25	20	779	18×11×7.0	162

SPECIFICATIONS

TYPE	OUTPUT (KW)	REDUCED RATIO	POLES (P)	VOLTAGE(V)	CURRENT(A)	SPEED (RPM)	TORQUE (kg-m)	RATING	BEARING (PL/OPL)	INS. CLASS
GSR070S	0.75	1/5,1/10,1/15,1/20,1/30,1/60	4	12/24	82/41	1750	0.417	1Hour	6204zz/6203zz	F
GSR093S	1.5	1/5,1/10,1/15,1/20,1/30,1/60	4	24/28	80/40	1750	0.834	1Hour	6306zz/6305zz	F
GSR093M	2.2	1/5,1/10,1/15,1/20,1/30,1/60	4	24/28	114/57	1750	1.224	1Hour	6306zz/6305zz	F
GSR116S	3.7	1/5,1/10,1/15,1/20,1/30,1/60	4	24/28	192/96	1750	2.05	1Hour	6207zz/6206zz	F
GSR116M	5.5	1/5,1/10,1/15,1/20,1/30	4	48	140	1750	3.06	1Hour	6207zz/6206zz	F
