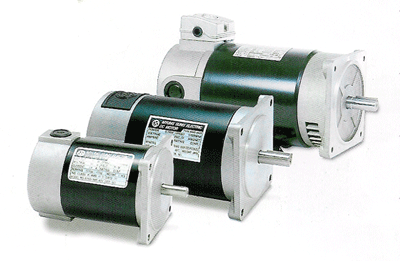

D.C PㆍM MOTOR

30W/100W/200W/400W
Permanent Magnet
VERTICAL(FLANGE)TYPE

MSR068M TYPE
  Out Put : 400W
  Voltage : 180V
  Excited : Permanent Magnet
  Poles : 2P
  Speed : 1750
  Rating : Continue
  Protection & Cooling :
  IP23/IC01

MNR047M TYPE
  Out Put : 100W
  Voltage : 90V
  Excited : Permanent Magnet
  Poles : 2P
  Speed : 1750RPM
  Rating : Continue
  Protection & Cooling :
  IP44/IC0041

MNR038M TYPE
  Out Put : 30 W
  Voltage : 90V
  Excited : Permanent Magent
  Poles : 2P

  Speed : 3000RPM
  Rating : Continue
  Protection & Cooling :
  IP44/IC0041

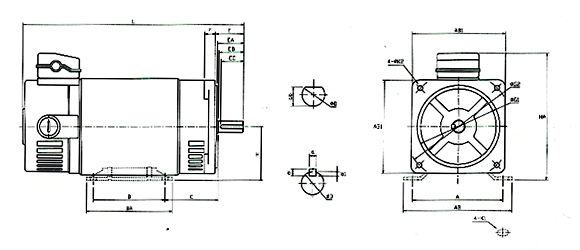

OUTLINE DIMENSIONS

TYPE	OUT PUT(KW)	A	AB	AB1	B	BA	C	ØD	E	EA	EB	EC	F	ØG1	ØG2	H	HA	K1	ØK2	L	KEY aXbXb1	APPROX WT.<kg>
GNR038M	30			80				8	30	28	26	23	9	75	94				6	151	7	1.7
GNR047M	100			96				12	33	30	28	25	12	80	115				7	203	4X4X2.5	4
GSR068S	200	125	150	130	100	120	52.5	16	37	37	35	32	15	115	152	74.5	182	15X8.5	7	254	5X5X3.0	8
GRS068M	400	125	150	130	100	120	75	16	37	37	35	32	15	115	152	74.5	182	15X8.5	7	309	5X5X3.0	11

SPECIFICATIONS

TYPE	OUTPUT (KW)	POLES (P)	VOLTAGE (V)	CURRENT (A)	SPEED (RPM)	TORQUE (kg-m)	RATING	BEARING (PL/OPL)	INS. CLASS
GNR038M	30	2	90	0.4	3000	0.973	CONT.	6200zz/628zz	F
GNR047M	100	2	90	1.3	1750	5.56	CONT.	6301zz/6200zz	F
GSR068S	200	2	180	1.4	1750	11.1	CONT.	6203zz/6202zz	F
GRS068M	400	2	180	2.8	1750	22.2	CONT.	6203zz/6202zz	F
