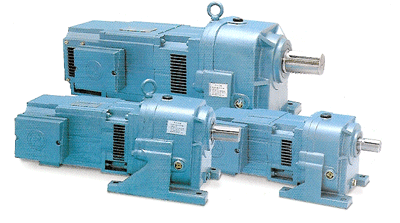

D.C GEARED MOTOR

0.2KW/0.4KW/0.75KW/1.5KW/2.2KW/3.7KW/5.5KW
Separately Excited
HORIZONTAL TYPE

GSS090M TYPE
  Out Put : 2.2 KW
  Armature(Voltage) : 180V
  Field(Voltage) : 90V
  Excited : Separately Excited
  Poles : 2P
  Speed : 1750RPM
  Reduced Ratio : 1/5～1/60
  Rating : Continue
  Protection & Cooling :
  IP23/IC01

GSS080M TYPE
  Out Put : 0.75 KW
  Armature(Voltage) :180V
  Field(Voltage) : 90V
  Excited : separately Excited
  Poles : 2P
  Speed : 1750RPM
  Reduced Ratio : 1/5～1/60
  Rating : Continue
  Protection & Cooling :
  IP23/ICO1
GSS070M TYPE
  Out Put : 0.4 KW
  Armature(Voltage) :180V
  Field(Voltage) : 90V
  Excited : separately Excited
  Poles : 2P
  Speed : 1750RPM
  Reduced Ratio : 1/5～1/60
  Rating : Continue
  Protection & Cooling :
  IP23/ICO1

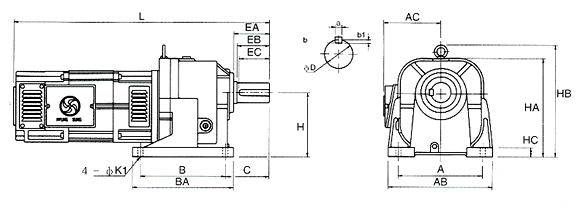

OUTLINE DIMENSIONS
TYPE OUT
PUT(KW)		 A AB AC B BA C ØD EA EB EC H HA HB HC ØK1 L KEY
aXbXb1		 APPROX
WT.<kg>
MSS07S 0.2 150 180 116 130 160 55 28 47 40 35 119 173   15 13 385 8×7×4.0 16
MSS070M 0.4 150 180 116 130 160 55 28 47 40 35 119 173   15 13 410 8×7×4.0 18
MSS080M 0.75 185 220 125 200 230 74 38 67 60 55 143 213 247
 18 13 528 10×8×5.0 46
MSS090S 1.5 210 260 140 212 252 104 50 88 80 75 160 245 279 23 13 652 16×10×6.0
 72
MSS090M 2.2 210 260 140 212 252 104 50 88 80 75 160 245 279 23 13 677 16×10×6.0
 76
MSS112S 3.7 310 360 222 330 370 116 55
60		 100 87
90		 82
85		 220 339 390 25 20 777 16×10×6.0
18×11×7.0		 160
MSS112M 5.5 310 360 222 330 370 116 60 100 90 85 220 339 390 25 20 817 18×11×7.0 174

SPECIFICATIONS
TYPE OUTPUT
(KW) 		REDUCED RATIO POLES
(P) 		ARMATURE FIELD
VOLTAGE(V)		 SPEED
(RPM)		 TORQUE
(kg-m)		 RATING BEARING
(PL/OPL)		 INS.
CLASS
VOLTAGE(V) CURRENT(A)
MSS070S 0.2 1/5,1/10,1/15.1/20.1/30.1/60

2

 180 1.4 90 1750 0.112 CONT. 6203zz/6202zz F
MSS070M 0.4 1/5,1/10,1/15.1/20.1/30.1/60 2 180 2.8 90 1750 0.224 CONT. 6203zz/6202zz F
MSS080M 0.75 1/5,1/10,1/15.1/20.1/30.1/60 2 180 5.3 90 1750 0.417 CONT. 6204zz/6303zz F
MSS090S 1.5 1/5,1/10,1/15.1/20.1/30.1/60 2 180 10.5 90 1750 0.834 CONT. 6305zz/6304zz F
MSS090M 2.2 1/5,1/10,1/15.1/20.1/30.1/60 2 180 15.4 90 1750 1.223 CONT. 6305zz/6304zz F
MSS112S 3.7 1/5,1/10,1/15.1/20.1/30.1/60 2 220 21 180 1750 2.059 CONT. 6207zz/6305zz F
MSS112M 5.5 1/5,1/10,1/15,1/20.1/30.1 2 220 30 180 1750 3.06 CONT. 6207zz/6305zz F
