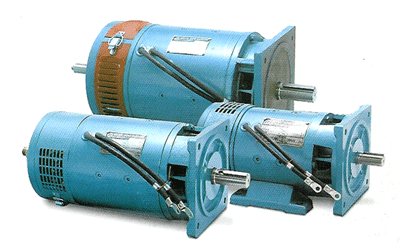

D.C BATTERY MOTOR

0.75KW/1.5KW/2.2KW/3.7KW/5.5KW/7.5KW
Separately Excited
VERTICAL(FLANGE)TYPE

MSR116M TYPE
  Out Put : 5.5KW
  Voltage:48V
  Excited : series Wound
  Poles : 4P
  Speed : 1750RPM
  Rating : 1Hour
  Protection & Cooling :
  IP00/IC01

MSR093M TYPE
  Out Put : 2.2KW
  Voltage:24V
  Excited : Series Wound
  Poles : 4P
  Speed : 1750RPM
  Rating : 1Hour
  Protection & Cooling :
  IP00/IC01

MSR070S TYPE
  Out Put : 0.75KW
  Voltage:24V
  Excited : Series Wound
  Poles : 4P

Speed : 1750RPM
Rating : 1Hour
Protection & Cooling :
IP00/IC01

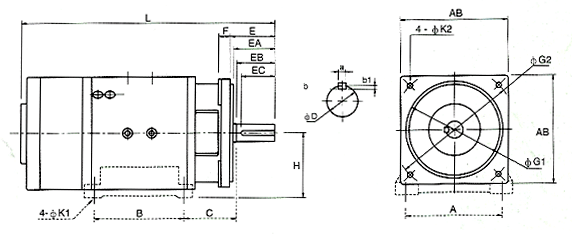

OUTLINE DIMENSIONS

TYPE	OUT PUT(KW)	A	AB	B	C	ØD	E	EA	EB	EC	F	ØG1	ØG2	H	ØK1	ØK2	L	KEY aXbXb1	APPROX WT.<kg>
MSR070S	0.75	140	150	115	80	19	45	42	40	35	15	130	175	80	10	8.5	328	6×6×3.5	15
MSR093S	1.5	170	178	150	82.5	28	65	65	60	55	17	160	207	103	12	9	411	8×7×4.0	36
MSR093M	2.2	170	178	150	92.5	28	68	65	60	55	17	160	207	103	12	9	431	8×7×4.0	40
MSR116S	3.7	210	222	170	104.5	32	76	73	70	65	17	200	255	130	14	11	474	10×8×5.0	65
MSR116M	5.5	210	222	170	119.5	32	76	73	70	65	17	200	255	130	14	11	504	10×8×5.0	73
MSR116L	7.5	210	222	170	127	32	76	73	70	65	17	200	255	130	14	11	519	10×8×5.0	77

SPECIFICATIONS

TYPE	OUTPUT (KW)	POLES (P)	VOLTAGE(V)	CURRENT(A)	SPEED (RPM)	TORQUE (kg-m)	RATING	BEARING (PL/OPL)	INS. CLASS
MSR070S	0.75	4	12/24	82/41	1750	0.417	1Hour	6204zz/6203zz	F
MSR093S	1.5	4	24/48	80/40	1750	0.834	1Hour	6306zz/6305zz	F
MSR093M	2.2	4	24/48	114/57	1750	1.224	1Hour	6306zz/6305zz	F
MSR116S	3.7	4	24/48	192/96	1750	2.05	1Hour	6207zz/6206zz	F
MSR116M	5.5	4	48	140	1750	3.06	1Hour	6207zz/6206zz	F
MSR116L	7.5	4	48	190	1750	4.17	1Hour	6207zz/6206zz	F
