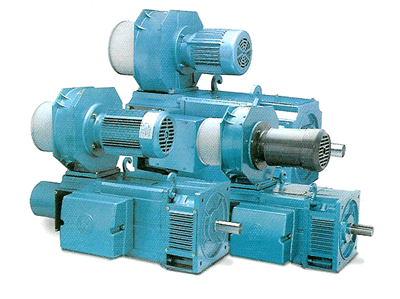

D.C MOTOR

7.5KW/11KW/15KW/22KW/30KW/37KW
Separately Excited
HORIZONTAL TYPE

MES160M TYPE
  Out put : 37KW
  Armature(Voltage) : 220V
  Field(Voltage) : 180V
  Excited : Separately Excited
  Poles : 4P
  Speed : 1750RPM
  Rating : Continue
  Protection & Cooling :
  IP23/IC06

MES132M TYPE
  Out put : 15KW
  Armature(Voltage) : 220V
  Field(Voltage) : 180V
  Excited : Separately Excited
  Poles : 4P
  Speed : 1750RPM
  Rating : Continue
  Protection & Cooling :
  IP23/IC06

MES112L TYPE
  Out Put : 7.5KW
  Armature(Voltage) : 220V
  Field(Voltage) : 180V
  Excited : Separately Excited
  Poles : 4P

  Speed : 1750RPM
  Rating : Continue
  Protection & Cooling :
  IP23/IC06

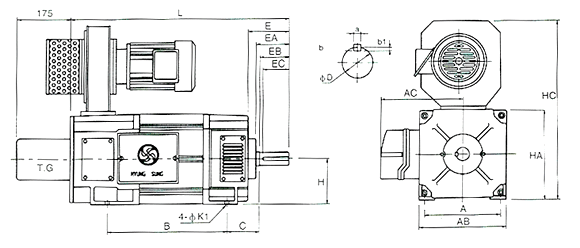

OUTLINE DIMENSIONS

TYPE	OUT PUT(KW)	A	AB	AC	B	C	ØD	E	EA	EB	EC	H	HA	HC	ØK1	L	KEY aXbXb1	APPROX WT.<kg>	Blower Motor
MES112L	7.5	190	222	215	347	58	32	78	75	70	65	113	224	490	11	574	10×8×5	106	0.2Kw-2p
MES132S	11	220	258	240	313	89	38	109	86	80	75	132	262	525	12	590	10×8×5	135	0.4Kw-2p
MES132M	15	220	258	240	353	89	38	109	86	80	75	132	262	525	12	630	10×8×5	155	0.4Kw-2p
MES132L	22	220	258	240	398	89	38	109	86	80	75	132	262	525	12	675	10×8×5	175	0.4Kw-2P
MES160S	30	254	318	270	443	108	48	131	115	110	105	160	318	635	15	817	14×9×5.5	260	0.75Kw-2p
MES160M	37	254	318	270	448	108	48	131	115	110	105	160	318	635	15	852	14×9×5.5	260	0.75Kw-2p

SPECIFICATIONS

TYPE	OUTPUT (KW)	POLES (P)	ARMATURE		FIELD VOLTAGE(V)	SPEED (RPM)	TORQUE (kg-m)	RATING	BEARING (PL/OPL)	INS. CLASS
TYPE	OUTPUT (KW)	POLES (P)	VOLTAGE(V)	CURRENT(A)	FIELD VOLTAGE(V)	SPEED (RPM)	TORQUE (kg-m)	RATING	BEARING (PL/OPL)	INS. CLASS
MES112L	7.5	2	220	41	180	1750	4.17	CONT.	6207zz/6305zz	F
MES132S	11	4	220	59	180	1750	6.12	CONT.	6308zz/6307zz	F
MES132M	15	4	220	81	180	1750	8.34	CONT.	6308zz/6307zz	F
MES132L	22	4	220	115	180	1750	12.24	CONT.	6308zz/6307zz	F
MES160S	30	4	220	156	180	1750	16.69	CONT.	6310zz/6309zz	F
MES160M	37	4	220	190	180	1750	20.59	CONT.	6310zz/6309zz	F
