  • 모터DC모터

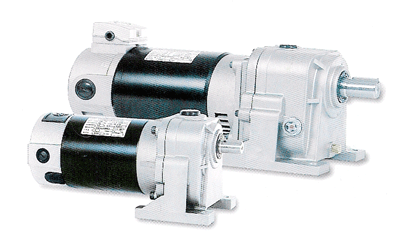

D.C   PㆍM GEARED MOTOR

100w/200w/400w
Permanent Magnet
HORIZONTALTYPE

GNR068M TYPE
  Out Put : 0.4KW
  Voltage : 180v
  Excited : Permanent Magnet     Poles : 2P
  Speed : 1750
  Reduced Ratio : (1/5 ～ 1/60)
  Rating : Continue
  Protection & Cooling :
  IP23/IC01

GNR047M TYPE
  Out Put : 100KW
  Voltage : 90v
  Excited : Permanent Magnet
  Poles : 2P
  Excited : Permanent Magnet   SPEED : 1750RPM
  Reduced Ratio : 1/ 10, 1/15,   1/30
  Protection & Cooling :
  IP44/IC0041

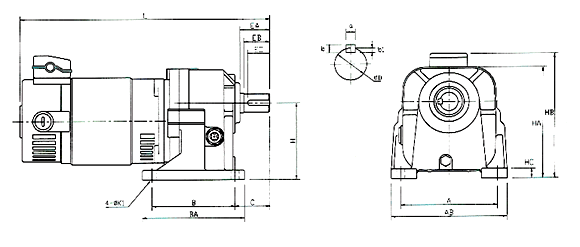

OUTLINE DIMENSIONS
TYPE OUT PUT(KW) A AB B BA C ØD EA EB EC H HA HB HC ØK1 L KEY
aXbXb1		 APPROX WT.<kg>
GNR047M 100 95 120 73 93 31 15 28 25 22 85 125   13 7 269 5×5×3.0 5
GSR068S 200 150 180 130 160 55 28 47 40 35 119 173 200 15 13 390 8×7×4.0 14
GSR068M 400 150 180 130 160 55 28 47 40 35 119 173 200 15 13 390 8×7×4.0 17

SPECIFICATIONS
TYPE OUTPUT
(KW) 		REDUCED
RATIO		 POLES (P) VOLTAGE
(V)		 CURRENT
(A)		 SPEED
(RPM)		 TORQUE
(kg-m)		 RATING BEARING
(PL/OPL)		 INS.
CLASS
GNR047M 100 1/10,1/15,1/30 2 90 1.3 1750 5.56 CONT. 6301zz/6200zz F
GSR068S 200 1/5,1/10,1/15,1/20,1/30,1/60 2 180 1.4 1750 11.1 CONT. 6303zz/6202zz F
GSR068M 400 1/5,1/10,1/15,1/20,1/30,1/60 2 180 2.8 1750 22.2 CONT. 6303zz/6202zz F
