CHAIN
TROUBLE-SHOOTING AND REPAIRING

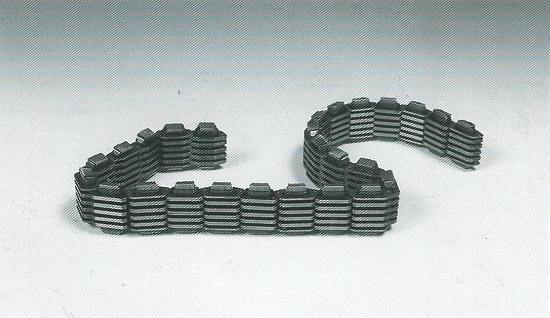

CHAIN

Chain Dimensions

SPECIAL FEASTURE

Type	Pitch	Width
A1	19	30.7
A2	25	38
A3	28	44.5
A4	36	59
A5	36	70
A6	44.5	77.8

ㆍMaterial : Carbon tool steel
ㆍLong lasting by special heat treatment

Type	L	M	N	d	P	V	O
MH	635	230	275	14	402	284	144
1H	725	250	290	14	450	320	156
2H	835	275	317	17	513	366	176
3H	935	332	386	20	634	452	222

* Up 5H(15HP) will be ordermade.
* Dia of output shaft will be change according torequired speed.(r.p.m)
* Above dimenions can be changed according to the case.
