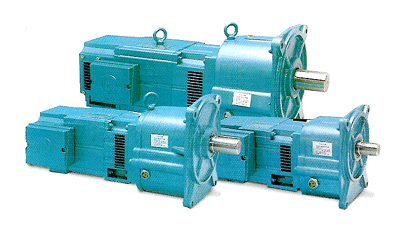

D.C GEARED MOTOR

0.2KW/0.4KW/0.75KW/1.5KW/2.2KW/3.7KW/5.5KW
Separately Excited
VERTICAL(FLANGE)TYPE

GSS090M TYPE
  Out Put : 2.2 KW
  Armature(Voltage) : 180V
  Field(Voltage) : 90V
  Excited : Separately Excited
  Poles : 2P
  Speed : 1750RPM
  Reduced Ratio : 1/5～1/60
  Rating : Continue
  Protection & Cooling :
  IP23/IC01

GSS080M TYPE
  Out Put : 0.75 KW
  Armature(Voltage) : 180V
  Field(Voltage) : 90V
  Excited : Separately Excited
  Poles : 2P
  Speed : 1750RPM
  Reduced Ratio : 1/5～1/60
  Rating : Continue
  Protection & Cooling :
  IP23/IC01

GSS070M TYPE
  Out Put : 0.4 KW
  Armature(Voltage) : 180V
  Field(Voltage) : 90V
  Excited : Separately Excited
  Poles : 2P

  Speed : 1750RPM
  Reduced Ratio : 1/5～1/60
  Rating : Continue
  Protection & Cooling :
  IP23/IC01

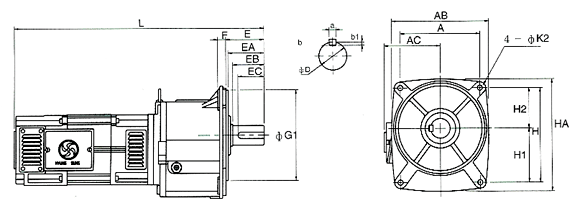

OUTLINE DIMENSIONS

TYPE	OUT PUT(KW)	A	AB	AC	ØD	E	EA	EB	EC	F	ØG1	H	H1	H2	HA	ØK2	L	KEY aXbXb1	APPROX WT.<kg>
GSS070S	0.2	140	176	116	28	47	44	40	35	17	150	177.5	107.5	70	207.5	10	385	8×7×4.0	16
GSS070M	0.4	140	176	116	28	47	44	40	35	17	150	177.5	107.5	70	207.5	10	410	8×7×4.0	18
GSS080M	0.75	177	227	125	38	84	81	60	55	18	210	219	130	89	265	13	540	10×8×5.0	46
GSS090S	1.5	205	250	140	50	93	90	80	75	21	230	240	137.5	102.5	285	13	652	16×10×6.0	72
GSS090M	2.2	205	250	140	50	93	90	80	75	21	230	240	137.5	102.5	285	13	667	16×10×6.0	76

SPECIFICATIONS

TYPE	OUTPUT (KW)	REDUCED RATIO	POLES (P)	ARMATURE		FIELD VOLTAGE(V)	SPEED (RPM)	TORQUE (kg-m)	RATING	BEARING (PL/OPL)	INS. CLASS
TYPE	OUTPUT (KW)	REDUCED RATIO	POLES (P)	VOLTAGE(V)	CURRENT(A)	FIELD VOLTAGE(V)	SPEED (RPM)	TORQUE (kg-m)	RATING	BEARING (PL/OPL)	INS. CLASS
GSS070S	0.2	1/5,1/10,1/15,1/20,1/30,1/60	2	180	1.4	90	1750	0.112	CONT.	6203zz/6202zz	F
GSS070M	0.4	1/5,1/10,1/15,1/20,1/30,1/60	2	180	2.8	90	1750	0.224	CONT.	6203zz/6202zz	F
GSS080M	0.75	1/5,1/10,1/15,1/20,1/30,1/60	2	180	5.3	90	1750	0.417	CONT.	6204zz/6303zz	F
GSS090S	1.5	1/5,1/10,1/15,1/20,1/30,1/60	2	180	10.5	90	1750	0.834	CONT.	6305zz/6304zz	F
GSS090M	2.2	1/5,1/10,1/15,1/20,1/30,1/60	2	180	15.4	90	1750	1.223	CONT.	6305zz/6304zz	F
