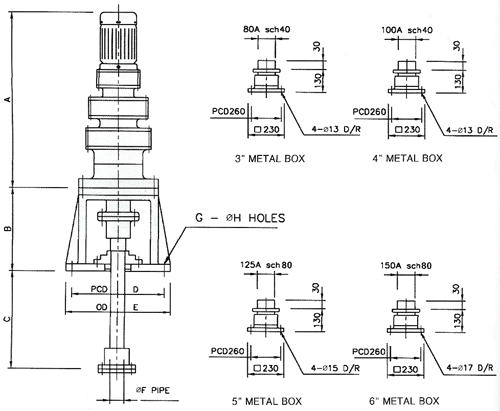

DRIVE UNIT PART-5~18m 침전조용 감속기

FRAME	침전조직경	kw	A	B	C	D	E	F	G	H	WEIGHT(kg)
HSCR-50	6m이하	0.74~0.4	550	250	130	310	340	3"	6	15	140
HSCR-60	6.1~8m	0.75	620	250	150	310	340	4"	6	17	185
HSCR-70	8.1~10m	0.75	670	300	170	370	430	4"	6	21	235
HSCR-80	10.1~12m	1.5~0.75	765	340	200	450	510	5"	6	23	320
HSCR-95	12.1~15m	1.5	805	380	240	540	600	6"	6	27	400
HSCR-110	15~18m	1.5	890	420	300	540	600	8"	6	30	690
