Capacity(TON)

2

2.8

3

5

Hoist Model name (Hosting Speed - Traversing Speed)

 High - High

 20S-6-HH

28S-6-HH

  30S-6-HH

 50S-6-HH

High - Low

 20S-6-HL

28S-6-HL

 30S-6-HL

50S-6-HL

Low - High

20S-6-LH

28S-6-LH

 30S-6-LH

50S-6-LH

Low - Low

20S-6-LL

28S-6-LL

 30S-6-LL

50S-6-LL

Hoist

Life (m)

6

6

6

6

Hoisting speed (m/min)

High speed  (60/50Hz)

10 / 8

9.0 / 7.5

9.0 / 7.5

5.6 / 4.7

low speed  (60/50Hz)

6 / 5

4.5 / 3.7

4.5 / 3.7

4.2 / 3.5

Hoisting speed (kwxP)

High speed  (60/50Hz)

3.7 / 3.1kw x 4P

5.5 / 4.6kw x 4P

5.6 / 4.6kw x 4P

 5.5 / 4.6kw x 6P

low speed  (60/50Hz)

2.5 / 2.0kw x 6P

2.8 / 2.3kw x 6P

2.8 / 2.3kw x 8P

4.5 / 3.7kw x 8P

Wire rope

Construction

6 x 19

6 x 37

6 x 37

6 x 37

Dia. (mm) x no.of  ropes

¢8 x 4Fall

¢9 x 4Fall

¢9 x 4Fall

¢12 x  4Fall

Hoisting Brake

D.C MAGNET DISK BRAKE "B" TYPE

Trollry

Traversing Speed(m/min)

High speed  (60/50Hz)

24 / 20

24 / 20

24 / 20

24 / 20

low speed  (60/50Hz)

16 / 13

16 / 13

16 / 13

16 / 13

Hoisting speed (m/min)

High speed  (60/50Hz)

0.75 /0.63kw x 4P

0.75 /0.63kw x 4P

0.75 /0.63kw x 4P

  0.75 /0.63kw x 4P

low speed  (60/50Hz)

0.5 / 0.42Kw x 6P

0.5 / 0.42Kw x 6P

0.5 / 0.42Kw x 6P

 0.5 / 0.42Kw x 6P

Traversing Brake

A.C , D.C MAGNET DISK BRAKE "B" TYPE

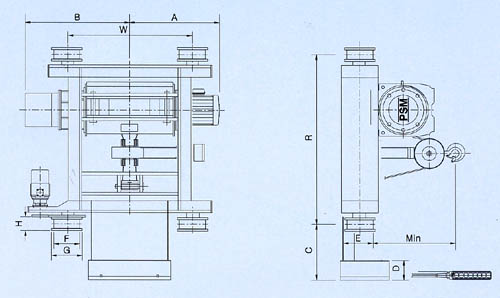

Dimensions(approx.) (mm)

min.

390

400

400

500

A

510

540

540

585

B

565

620

620

705

C

750

750

750

835

D

200

200

200

220

E

175

175

175

580

F

140

140

140

165

G

173

170

170

195

H

47

47

47

47

Rail Gage R

950

950

950

1150

Wheel Base W

700

700

700

760

Min. radius of curvature (mm)

15 kg / m

 15 kg /m

15 kg /m

15 kg /m

Weight (kg)

422

520

520

719
