Capacity(TON)

1

2

2.8

3

5

Hoist Model name

 High - High

10L-6(12) -HH

20L-6(12) -HH

 28L-6(12) -HH

30L-6(12) -HH

 50L-6(12) -HH

High - Low

10L-6(12) -HL

20L-6(12) -HL

 28L-6(12) -HL

30L-6(12) -HL

 50L-6(12) -HL

Low - High

10L-6(12) -LH

20L-6(12) -LH

 28L-6(12) -LH

30L-6(12) -LH

 50L-6(12) -LH

Low - Low

10L-6(12) -LL

20L-6(12) -LL

 28L-6(12) -LL

30L-6(12) -LL

 50L-6(12) -LL

Hoist

Life (m)

6

6

6

6

6

Hoisting speed (m/min)

High speed  (60/50Hz)

12 / 10

10 / 8

9.0 / 7.5

9.0 / 7.5

5.6 / 4.7

low speed  (60/50Hz)

8 / 7

6 / 5

4.5 / 3.7

4.5 / 3.7

4.2 / 3.4

Hoisting speed (kwxP)

High speed  (60/50Hz)

2.2 / 1.8kw x 4P

3.7 / 3.1kw x 4P

5.5 / 4.6kw x 4P

5.6 / 4.6kw x 4P

5.5 / 4.6kw x 6P

low speed  (60/50Hz)

1.5 / 1.25kw x 6P

2.5 / 2.0kw x 6P

2.8 / 2.3kw x 8P

2.8 / 2.3kw x 8P

4.5 / 3.7kw x 8P

Wire rope

Construction

6 x 19

6 x 19

6 x 37

6 x 37

6 x 37

Dia. (mm) x no.of  ropes

¢6 x 2Fall

¢8 x 2Fall

¢9 x 2Fall

¢9 x  2Fall

¢12.5 x 2Fall

Hoisting Brake

D.C MAGNET DISK BRAKE "B" TYPE

Trollry

Traversing Speed(m/min)

High speed  (60/50Hz)

24 /20

24 / 20

24 / 20

24 / 20

24 / 20

low speed  (60/50Hz)

16 / 13

16 / 13

16 / 13

16 / 13

16 / 13

Hoisting speed (m/min)

High speed  (60/50Hz)

0.75 / 0.63kw x 4P

0.75 / 0.63kw x 4P

0.75 / 0.63kw x 4P

0.75 / 0.63kw x 4P

0.75 / 0.63kw x 4P

low speed  (60/50Hz)

0.5 / 0.42Kw x 6P

0.5 / 0.42Kw x 6P

0.5 / 0.42Kw x 6P

0.5 / 0.42Kw x 6P

0.5 / 0.42Kw x 6P

Traversing Brake

D.C MAGNET DISK BRAKE "B" TYPE

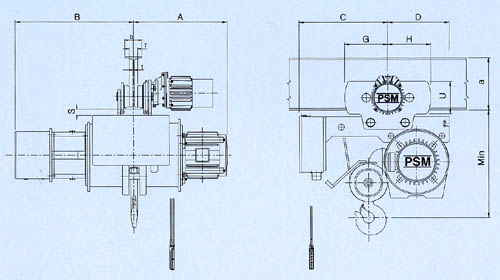

Dimensions(approx.) (mm)

min.

550

580

580

580

780

A

480

510

545

540

585

B

905

565

620

620

705

C

405

435

510

510

600

D

300

400

395

395

465

G

200

225

225

225

275

H

200

225

225

225

275

I-beam and spacing (mm)

a x bx t

S

T

U

S

T

U

S

T

U

S

T

U

S

T

U

200x100*t7/10

 38

49

162

 30

46

182

250x125xt7.5/12.5

30

74

162

30

71

182

24

71

182

24

71

182

39

56

222

300x150x10/18.5

38

99

162

28

96

182

24

96

182

24

96

182

37

81

224

450x175xt13/26

34

106

228

Min. radius of curvature (mm)

1500

1800

1800

1800

2300

Weight (kg)

200

350

470

470

730
