Capacity(TON)

7.5

10

15

20

30

Hoist Model name (Hosting Speed - Traversing Speed)

 High - High

  75D-12-HH

100D-12-HH

 150D-12-HH

200D-12-HH

 300D-12-HH

High - Low

 75D-12-HL

100D-12-HL

150D-12-HL

200D-12-HL

 300D-12-HL

Low - High

 75D-12-LH

100D-12-LH

150D-12-LH

200D-12-LH

 300D-12-LH

Low - Low

 75D-12-LL

100D-12-LL

 150D-12-LL

200D-12-LL

300D-12-LL

Hoist

Life (m)

12

12

12

12

12

Hoisting speed (m/min)

High speed  (60/50Hz)

3.8 / 3.2

4.5 / 3.7

4.5 / 3.7

4.2 / 3.4

2.8 / 2.3

low speed  (60/50Hz)

2.8 / 2.3

3.0 / 2.5

3.0 / 2.5

2.8 / 2.3

1.8 / 1.5

Hoisting speed (kwxP)

High speed  (60/50Hz)

5.5 / 4.6kw x 6P

9.0 / 7.5kw x 8P

13.0 /10.8kw x 8P

 17.0 / 14.2kw x 8P

17.0 /14.2kw x 8P

low speed  (60/50Hz)

4.2 / 3.2kw x 6P

6.0 / 5.0kw x12P

8.5 / 7.1kw x 12P

11.5 / 9.6kw x 12P

11.5 / 9.6kw x 12P

Wire rope

Construction

6 x 19

6 x 37

6 x 37

6 x 37

6 x 37

Dia. (mm) x no.of  ropes

¢14 x 4Fall

¢16 x 4Fall

¢20 x 4Fall

¢22.4 x  4Fall

¢22.4 x  4Fall

Hoisting Brake

D.C MAGNET DISK BRAKE "B" TYPE

Trollry

Traversing Speed(m/min)

High speed  (60/50Hz)

16 / 13

16 / 13

16 / 13

16 / 13

16 / 13

low speed  (60/50Hz)

11 / 9

11 / 9

11 / 9

11 / 9

11 / 9

Hoisting speed (m/min)

High speed  (60/50Hz)

0.75 /0.63kw x 4P

0.75 /0.63kw x 4P

1.5 / 1.3kw x 4P

 1.5 / 1.3kw x 4P

1.5 / 1.3kw x 4Px2

low speed  (60/50Hz)

0.5 / 0.42Kw x 6P

0.5 / 0.42Kw x 6P

1.0 / 0.83Kw x 6P

 1.0 / 0.83Kw x 6P

1.0 / 0.83Kw x 6Px2

Traversing Brake

A.C , D.C MAGNET DISK BRAKE "B" TYPE

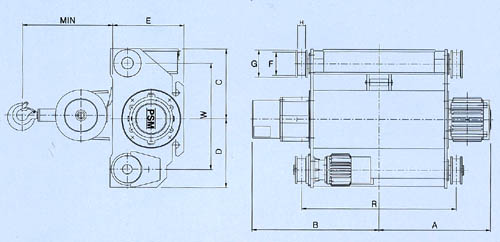

Dimensions(approx.) (mm)

min.

730

775

995

1190

1480

A

835

955

1005

1215

1475

B

925

975

1075

1174

1434

C

480

502

555

585

970

D

525

583

625

740

930

E

595

665

854

925

975

F

165

165

180

220

250

G

195

195

203

250

280

H

47

58

58

58

70

Rail Gge R

1150

1150

1200

1300

1800

Wheel Base W

800

855

920

1000

1540

Min. radius of curvature (mm)

15 kg / m

 15 kg /m

22 kg /m

22kg /m

30kg /m

Weight (kg)

900

1200

1920

2300

3450
