Capacity(TON)

7.5

10

15

20

Hoist Model name

 High - High

75M-12-HH

100M-12-HH

150M-12-HH

200M-12-HH

High - Low

75M-12-HL

100M-12-HL

150M-12-HL

200M-12-HL

Low - High

75M-12-LH

100M-12-LH

150M-12-LH

200M-12-LH

Low - Low

75M-12-LL

100M-12-LL

150M-12-LL

200M-12-LL

Hoist

Life (m)

12

12

12

12

Hoisting speed (m/min)

High speed  (60/50Hz)

 3.8 / 3.2

4.5 / 3.7

4.5 / 3.7

4.2 / 3.4

low speed  (60/50Hz)

2.8 / 2.3

3.0 / 2.5

3.0 / 2.5

2.8 / 2.3

Hoisting speed (kwxP)

High speed  (60/50Hz)

5.5 / 4.6kw x 6P

9.0 / 7.5kw x 8P

13.0 / 10.8kw x 8P

17.0 / 14.2kw x 8P

low speed  (60/50Hz)

4.2 / 3.2kw x 8P

6.0 / 5.0kw x 12P

8.5 / 7.1kw x 12P

11.5 / 9.6kw x 12P

Wire rope

Construction

6 x 37

6 x 37

6 x 37

6 x 37

Dia. (mm) x no.of  ropes

¢14 x 4Fall

¢16 x 4Fall

¢20 x 4Fall

¢22.4 x  4Fall

Hoisting Brake

D.C MAGNET DISK BRAKE "B" TYPE

Trollry

Traversing Speed(m/min)

High speed  (60/50Hz)

18 / 15

18 / 15

16 / 13

16 / 13

low speed  (60/50Hz)

12 / 10

12 / 10

11 / 9

11 / 9

Hoisting speed (m/min)

High speed  (60/50Hz)

0.75 /0.63kw x 4P

0.75 /0.63kw x 4P

1.5 / 1.3kw x 4P

1.5 / 1.3kw x 4P

low speed  (60/50Hz)

0.5 / 0.42Kw x 6P

0.5 / 0.42Kw x 6P

1.0 / 1.8Kw x 6P

1.0 / 0.83Kw x 6P

Traversing Brake

D.C MAGNET DISK BRAKE "B" TYPE

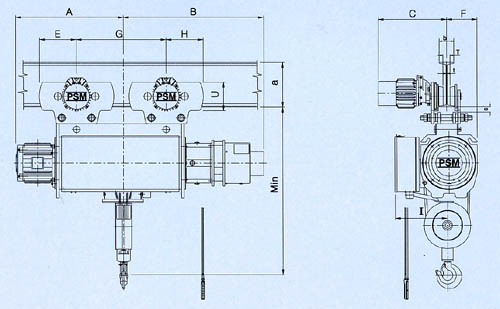

Dimensions(approx.) (mm)

min.

1460

1520

1875

2115

A

835

975

1110

1165

B

925

955

1110

1120

E

300

328

390

400

F

275

275

300

300

G

800

800

800

800

H

275

275

300

300

I

447

510

600

610

I-beam and spacing (mm)

a x bx t

C

S

T

U

C

S

T

U

C

S

T

U

C

S

T

U

250x125xt7.5/12.5

468

39

56

222

468

39

56

222

300x150x10/18.5

480

37

81

224

480

37

81

224

580

32

77

248

580

32

77

248

450x175xt13/26

493

34

106

228

493

34

106

228

580

32

92

248

580

32

92

248

Min. radius of curvature (mm)

Weight (kg)

910

1200

2080

2430
