Capacity(TON)

1

2

2.8

3

5

Hoist Model name

 High - High

10M-6(12)M-HH

20M-6(12)M-HH

28M-6(12)M-HH

30M-6(12)M-HH

 50M-6(12)M-HH

High - Low

10M-6(12)M-HL

20M-6(12)M-HL

 28M-6(12)M-HL

30M-6(12)M-HL

 50M-6(12)M-HL

Low - High

10M-6(12)M-LH

20M-6(12)M-LH

 28M-6(12)M-LH

30M-6(12)M-LH

 50M-6(12)M-LH

Low - Low

10M-6(12)M-LL

20M-6(12)M-LL

 28M-6(12)M-LL

30M-6(12)M-LL

 50M-6(12)M-LL

Hoist

Life (m)

6 (12)

6 (12)

6 (12)

6 (12)

6 (12)

Hoisting speed (m/min)

High speed  (60/50Hz)

12 / 10

10 / 8

9.0 / 7.5

9.0 / 7.5

5.6 / 4.7

low speed  (60/50Hz)

8 / 7

6 / 5

4.5 / 3.7

4.5 / 3.7

4.2 / 3.5

Hoisting speed (kwxP)

High speed  (60/50Hz)

2.2 / 1.8kw x 4P

3.7 / 3.1kw x 4P

5.5 / 4.6kw x 4P

5.6 / 4.6kw x 4P

5.5 / 4.6kw x 4P

low speed  (60/50Hz)

1.5 / 1.25kw x 6P

2.5 / 2.0kw x 6P

2.8 / 2.3kw x 8P

2.8 / 2.3kw x 8P

4.5 / 3.7kw x 8P

Wire rope

Construction

6 x 37

6 x 37

6 x 37

6 x 37

6 x 37

Dia. (mm) x no.of  ropes

¢8 x 2Fall

¢10 x 2Fall

¢12.5 x 2Fall

¢12.5 x  2Fall

¢16 x 2Fall

Hoisting Brake

D.C MAGNET DISK BRAKE "B" TYPE

Trollry

Traversing Speed(m/min)

High speed  (60/50Hz)

24 /20

24 / 20

24 / 20

24 / 20

24 / 20

low speed  (60/50Hz)

16 / 13

16 / 13

16 / 13

16 / 13

16 / 13

Hoisting speed (m/min)

High speed  (60/50Hz)

0.75 / 0.63kw x 4P

0.75 / 0.63kw x 4P

0.75 / 0.63kw x 4P

0.75 / 0.63kw x 4P

0.75 / 0.63kw x 4P

low speed  (60/50Hz)

0.5 / 0.42Kw x 6P

0.5 / 0.42Kw x 6P

0.5 / 0.42Kw x 6P

0.5 / 0.42Kw x 6P

0.5 / 0.42Kw x 6P

Traversing Brake

D.C MAGNET DISK BRAKE "B" TYPE

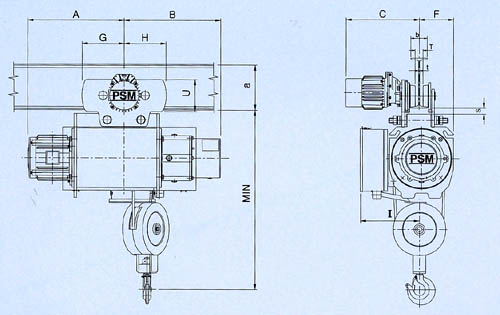

Dimensions(approx.) (mm)

min.

815

980

1110

1110

1325

A

380 (480)

465 (565)

520 (620)

520 (620)

605 (705)

B

405 (505)

410 (510)

440 (540)

440 (540)

505 (605)

C

170

205

210

210

250

F

200

225

225

225

275

G

200

225

225

225

275

I

255

400

430

430

447

I-beam and spacing (mm)

a x bx t

C

S

T

U

C

S

T

U

C

S

T

U

C

S

T

U

C

S

T

U

200x100xt7/10

385

38

49

162

250x125xt7.5/12.5

398

38

74

162

453

30

71

182

453

24

71

182

453

24

71

182

468

39

56

222

300x150x10/18.5

410

28

99

162

465

28

96

182

465

24

96

182

465

24

96

182

480

37

81

224

450x175xt13/26

493

34

106

228

Min. radius of curvature (mm)

1500

1800

1800

1800

2300

Weight (kg)

190 (218)

278 (314)

374 (416)

374 (416)

581 (645)
