Capacity(Ton)

7.5

10

15

20

Hoist Model name

High speed

75SUS-12-H

100SUS-12-H

150SUS-12-H

200SUS-12-H

Low speed

75SUS-12-L

100SUS-12-L

150SUS-12-L

200SUS-12-L

Hoist

Life (M)

12

12

12

12

Hoisting speed (m/min)

High speed  (60/50Hz)

3.8 / 3.2

4.5 / 3.7

4.5 / 3.7

4.2 / 3.4

low speed  (60/50Hz)

2.8 / 2.3

3.0 / 2.5

3.0 / 2.5

2.8 / 2.3

Hoisting speed (kw x P)

High speed  (60/50Hz)

5.5 / 4.6kw x 6P

9.0 / 7.5kw x 8P

13.0 / 10.8kw x 8P

17. 0 / 14.2kw x 8P

low speed  (60/50Hz)

4.2 / 3.2kw x 8P

6.0 / 5.0kw x 12P

8.5 / 7.1kw x 12P

11.5 / 9.6kw x 12P

Wire rope

Construction

6 x 37

6 x 37

6 x 37

6 x 37

Dia. (mm) x no.of  ropes

¢14 x 4Fall

¢16 x 4Fall

¢20 x 4Fall

¢22.4 x 2Fall

Hoistiong Brake

D.C MAGNET DISK BRAKE "B" TYPE

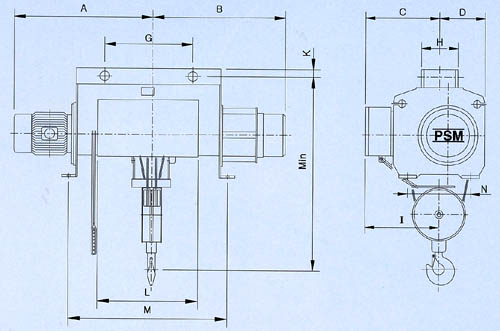

Dimensions (approx.) (mn)

min.

1270

1330

1660

1900

A

835

955

1005

1220

B

925

975

1075

1165

C

510

510

600

610

D

335

335

360

640

G

800

800

800

850

H

232

232

272

272

I

510

510

600

610

J

720

740

965

1150

K

50

50

65

65

M

100

1100

1150

1250

N

400

400

500

500

O

52

77

70

70

d1

47

47

63

63

d2

25

25

25

25

Weight (kg)

698

997

1493

1910
