Suspension & Satationay Type Hoist 1~5 ton


Capacity(TON) 1 2 2.8 3 5
Hoist Model name High speed 10SUS-6(12)-H 20SUS-6(12)-H 28SUS-6(12)-H 30SUS-6(12)-H 50SUS-6(12)-H
Low speed 10SUS-6(12)-L 20SUS-6(12)-L 28SUS-6(12)-L 30SUS-6(12)-L 50SUS-6(12)-L
Hoist Life (M) 6 (12) 6 (12) 6 (12) 6 (12) 6 (12)
Hoisting speed (m/min) High speed  (60/50Hz) 12 / 10 10 / 8 9.0 / 7.5 9.0 / 7.5 5.6 / 4.7
low speed  (60/50Hz) 8 / 7 6 / 5 4.5 / 3.7 4.5 / 3.7 4.2 / 3.4
Hoisting speed (kw x P) High speed  (60/50Hz) 2.2 / 1.8kw x 4P 3.7 / 3.1kw x 4P 5.5 / 4.6kw x 4P 5.6 / 4.6kw x 4P 5.5 / 4.6kw x 4P
low speed  (60/50Hz) 1.5 / 1.25kw x 6P 2.5 / 2.0kw x 6P 2.8 / 2.3kw x 8P 2.8 / 2.3kw x 8P 4.5 / 3.7/kw x 8P
Wire rope Construction 6 x 37 6 x 37 6 x 37 6 x 37 6 x 37
Dia. (mm) x no.of  ropes ¢8 x 2Fall ¢10 x 2Fall ¢12.5 x 2Fall ¢12.5 x 2Fall ¢16 x 2Fall
Hoistiong Brake D.C MAGNET DISK BRAKE "B" TYPE

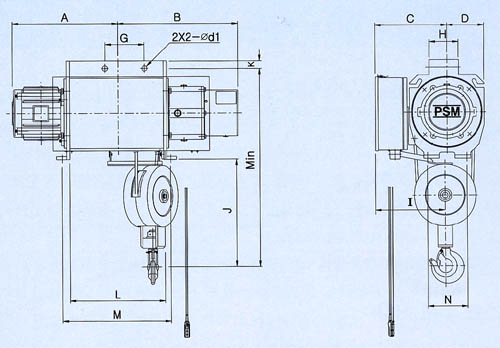

Dimensions (approx.) (mn) min. 750 920 1060 1060 1245
A 380 (480) 410 (510) 440 (540) 440 (540) 505 (605)
B 405 (505) 465 (565) 520 (620) 520 (620) 605 (705)
C 255 400 430 430 447
D 170 205 210 210 250
G 180 180 200 200 250
H 112 150 150 150 180
I 255 400 430 430 447
J 360 470 560 560 690
K 28 34 34.5 34.5 44.5
M 350(550) 350(550) 364(564) 364(564) 450(630)
N 150 200 200 200 250
O 50 47.5 45 45 50
d1 27 32 32 32 48
d2 17 17 17 17 17
Weight (kg) 142(170) 202(240) 300(349) 300(349) 462(530)
