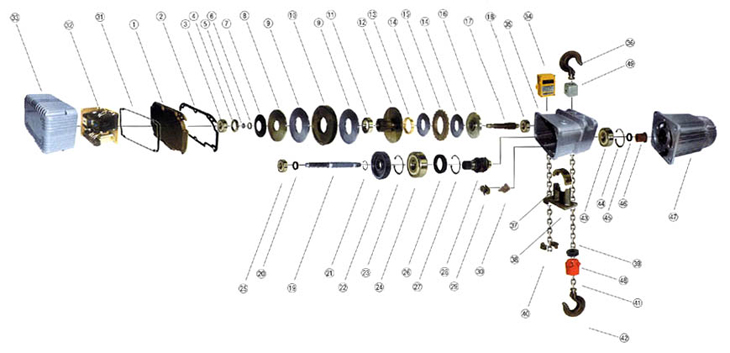

NO. |
DESCRIPTION |
PART NO. |
Q' TY |
NO. |
DESCRIPTION |
PART NO. |
Q' TY |
01 |
SLIDE PLATE |
100302-0 |
11 |
26 |
OIL SEAL |
100101B3 |
1 |
02 |
PACKING |
100307P0 |
1 |
27 |
SNAP RING |
100301B2 |
1 |
03 |
BEARING |
100201B1 |
1 |
28 |
LOAD SHEAVE |
100101-0 |
1 |
04 |
BEARING NUT |
100213B1 |
1 |
29 |
PAWL |
100306-0 |
1 |
05 |
COLLAR |
100212M0 |
2 |
30 |
PAWL SHAFT |
100305-0 |
1 |
06 |
COLLAR |
100212M0 |
1 |
31 |
PACKING G |
100302-0 |
1 |
07 |
SPRING |
100213P0 |
1 |
32 |
CONTROL PANNEL |
100302P1 |
1 |
08 |
DISK HUB |
100203P0 |
1 |
33 |
COVER |
100303P0 |
1 |
09 |
LINING |
100204P0 |
2 |
34 |
LOAD LIMITER |
100301P1 |
1 |
10 |
1ST GEAR |
100202G0 |
1 |
35 |
BODY |
100301-0 |
1 |
11 |
BUSH |
100210-0 |
1 |
36 |
UPPER HOOK |
100316F0 |
1 |
12 |
DISK HUB |
100207-0 |
1 |
37 |
CHAIN GUIDE |
100304M0 |
1 |
13 |
BUSH |
100209-0 |
1 |
38 |
CHAIN GUIDE |
100304-0 |
1 |
14 |
LINING |
100208P0 |
2 |
39 |
CHAIN |
100317B0 |
1 |
15 |
RATCHET |
100205-0 |
1 |
40 |
STOPPER |
100318F0 |
2 |
16 |
DISK HUB |
100206G0 |
1 |
41 |
HOOK HOLDER |
100319F0 |
1 |
17 |
2ND PINIO N |
100201B1 |
1 |
42 |
BOTTOM HOOK |
100319F0 |
1 |
18 |
BEARING |
100201B2 |
1 |
43 |
BEARING |
100101B4 |
1 |
19 |
1ST PINION |
100102G0 |
1 |
44 |
SNAP RING |
100301B3 |
1 |
20 |
OIL SEAL |
100101B5 |
1 |
45 |
OIL SEAL |
100101B4 |
1 |
21 |
SNAP RING |
100101B6 |
2 |
46 |
JOINT COUPLING |
100105G0 |
1 |
22 |
2ND GEAR |
100103G0 |
1 |
47 |
MOTOR |
100401-0 |
1 |
23 |
SNAP RING |
100301B2 |
1 |
48 |
CUSHION RUBBER |
100320-0 |
2 |
24 |
BEARING |
100101B1 |
1 |
49 |
HOOK HOLDER |
100321-0 |
1 |
25 |
BEARING |
100102B1 |
1 |
. |
. |
. |
. |
|
