  • 호이스트체인 호이스트

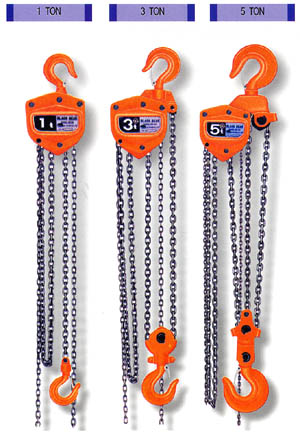

Chain Block

  • LOAD BRAKE

  • LOAD CHAIN & SHEAVE

  • NEEDLE BEARINGS

  • HAND WHEEL COVER

  • HOOKS
SPECIFICATION (DH)
Capacity
( Ton )
Safe Working Load
Lift
Pulling efforts
No.of load chain
Min.drawn-up dimensions
Net Weight
Test Load
lbs
kgf
feet
m
lbs
kgf
in
mm
lbs
kgf
0.5
1,100
500
8.2
2.5
66.0
30
1
11 27/64
290
27.5
12.5
0.75
1.0
2,200
1,000
8.2
2.5
66.0
30
1
11 27/64
290
27.5
12.5
1.5
1.5
3,300
1,500
8.2
2.5
72.6
33
1
13 25/32
350
39.6
18.0
2.25
2.0
4,400
2,000
9.8
3
77.0
35
1
14 61/64
380
56.1
25.5
3.0
3.0
6,600
3,000
9.8
3
75.6
34
2
20 7/8
530
63.3
28.5
4.5
5.0
11,000
5,000
9.8
3
85.8
39
3
26 3/8
670
96.8
44.0
7.5
10.0
22,000
10,000
11.5
3.5
107.8
49
3
34 41/64
850
200.2
91.0
12.5
15.0
33,000
15,000
11.5
3.5
114.6
52
5
45 9/32
1150
399.0
181.0
18.75
20.0
44,000
20,000
11.5
3.5
119X2
54X2
6
49 7/32
1250
743.0
337.0
25.0
30.0
66,100
30,000
11.5
3.5
119X2
54X2
10
57 3/32
1450
1084.6
492.0
37.5
40.0
88,000
40,000
11.5
3.5
119X2
54X2
14
64 31/32
1780
1653.0
750.0
50.0
50.0
110,000
50,000
11.5
3.5
119X2
54X2
18
76 15/16
1950
2046
930.0
62.5



DIMENSIONS(DH)
Capacity
(TON)
A
B
D
E
F
F1
N
in
(mm)
in
(mm)
in
(mm)
in
(mm)
in
(mm)
in
(mm)
feet
(mm)
Light Type 0.5
2 9/32
58
2 9/64
54
2 61/64
75
2 11/64
55
1 3/32
28
2 9/32
23
8.2
2.5
1.0
2 43/64
68
2 9/32
58
2 61/64
75
2 9/16
65
1 11/32
34
1 3/32
28
8.2
2.5
0.5
3 17/64
83
2 21/64
59
3 27/64
87
2 7/16
62
1 29/32
23
25/32
20
8.2
2.5
1
3 5/16
84
2 17/32
64
3 21/32
93
2 23/32
69
1 7/64
28
63/64
25
8.2
2.5
1.5
3 37/64
91
2 53/64
72
4 21/64
110
3 15/64
82
1 17/64
32
1 3/16
30
8.2
2.5
2
3 25/32
96
3 3/6
81
5 1/8
129
3 21/32
93
1 19/64
33
1 3/16
30
9.8
3.0
3(1F)
4 1/64
102
3 1/2
89
5 53/64
148
4 3/32
104
1 39/64
41
1 27/64
36
9.8
3.0
3(2F)
3 37/64
91
2 53/64
72
6 19/64
160
3 19/32
66
1 39/64
41
1 27/64
36
9.8
3.0
5
3 37/64
91
2 53/64
72
7 7/8
200
4 21/64
110
1 57/64
48
1 11/16
43
11.8
3.6
10
4 1/64
102
3 1/2
89
11 7/32
285
5 7/16
138
2 53/64
72
2 3/8
60
13.4
4.1
15
4 21/64
110
5 29/32
150
6 1/2
165
12 13/32
315
3 35/64
90
2 61/64
75
11.5
4.5
20
7 11/16
195
7 11/16
195
15 3/4
400
15 3/4
400
3 35/64
90
3 11/32
85
11.5
4.5
30
9 1/4
235
9 1/4
235
16 11/32
415
16 11/32
415
3 15/16
100
3 35/64
90
11.5
4.8
40
11 27/64
290
11 27/64
290
11 27/64
460
18 7/64
460
18 7/64
110
4 11/32
100
12
5.0
top
top
