  • 엘리베이터덤웨이터 권상기

MOTOR SPECIFICATION
Frequency 50Hz or 60Hz
Insulation Class "B","E" standard, "F" Available
Protection Grade "IP44"standard,"IP54" Available
Heat Protection Available With Thermostat or Thermistor
Electronic Regulation "VVVF"Available or AC1
Pole 6P, 6P/12P
Power 0.75㎾(1HP)~5.5㎾(7.5HP)
PERFORMANCE

Efficiency of Power Transfer:75%
Shaft Load:1,000㎏
Noise:60㏈(A)
Vibration:8㎛
Brake:Magnetic Brake
         Non Asbestos
         DC 90V,0.8A
Weight:100㎏(with motor)
Lubricating oil : ISO VG#220,4ℓ

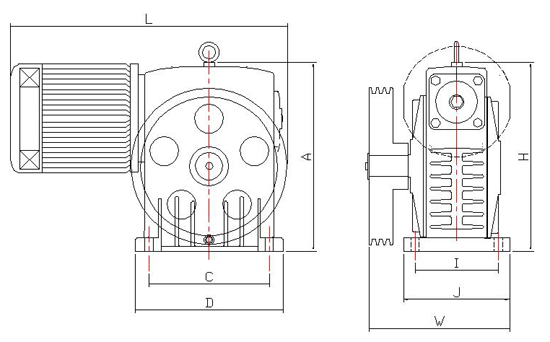

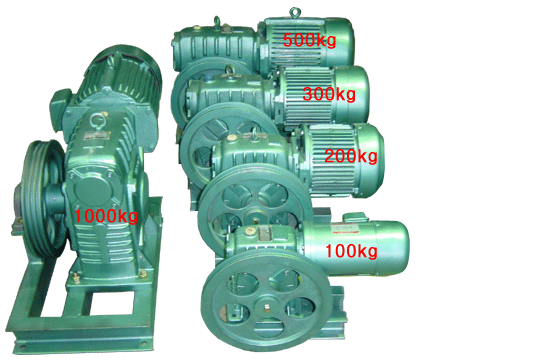

MODEL 덤 웨이터 외형치수 SHAFT O.H.L
(kg)
기호 모터용량 속도
m/min		 메인쉬브사양 세컨쉬브사양 L W H C D I J
외경 열수 외경 열수
M-DW100 0.75kw × 6P 18.5 Φ260
 Φ8×2 Φ200 Φ8×2
 400 210 235 150 190 115 150 300
M-DW200 1.5kw × 6P 20/30 Φ340 Φ8×3 Φ8×3 460 285 300 180 215 136 170 400
M-DW300 2.0kw × 6P 660 265 345 220 320 155 190 458
M-DW500 3.0kw × 6P Φ10×3 Φ250 Φ10×3 750 305 410 260 350 180 230 518
M-DW1000 4.0kw × 6/12P Φ400 Φ400 790 335 490 290 350 200 250 827
M-DW1500 5.5kw × 6/12P Φ10×4 Φ10×4
 900 335 580 320 380 220 250 1500
