엘리베이터엘리베이터 권상기

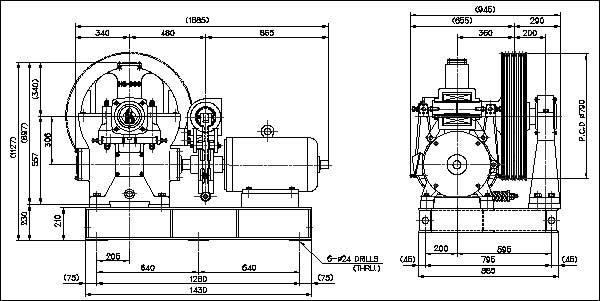

19-22 PERSONS ELEVATOR TRACTION MACHINE

(HS306C)

MOTOR SPECIFICATION

Frequency	50Hz or 60Hz
Insulation Class	"B","E" standard, "F" Available
Protection Grade	"IP44"standard,"IP54" Available
Heat Protection	Available With Thermostat or Thermistor
Electronic Regulation	"ACVV","VVVF" Available
Pole	4P, 6P, 4/16P, 6/24P
Power	30㎾(40HP)

PERFORMANCE

Efficiency of Power Transfer:78%
Shaft Load:11,000㎏
Noise:65㏈(A)
Vibration:8㎛
Brake:Magnetic Brake
Non Asbestos
DC 110V,1.5A
Weight:1,500㎏(with motor)
Lubricating oi l: ISO VG#320, 20ℓ

Hz	RATED SPEED	RATIO	SHEAVE DIA.	MOTOR SPEC.	RATED LOAD	ROPE	ROPING
60	30m/min	2/79	Ø640	30㎾×6p	5000㎏	Ø16×6/7 (pitch 26)	2:1
	45m/min			30㎾×4p	4000㎏		2:1
	60m/min			30㎾×6p	3000㎏		1:1
	90m/min			30㎾×4p	2000㎏
	105m/min		Ø790		1650㎏
	120m/min	2/59	Ø640		1500㎏
50	30m/min	2/79	Ø790	30㎾×6p	5000㎏		2:1
	45m/min			30㎾×4p	4000㎏		2:1
	60m/min			30㎾×6p	3000㎏		1:1
	90m/min			30㎾×4p	2000㎏
	105m/min		Ø700		1650㎏
	120m/min	2/59	Ø790		1500㎏
