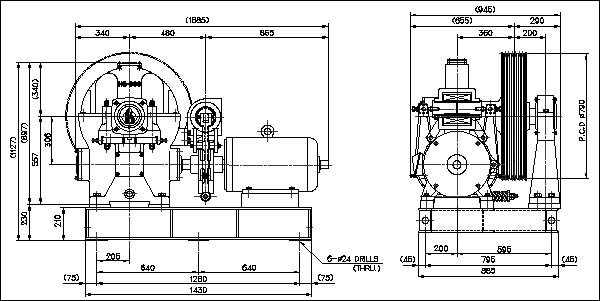

17-20 PERSONS ELEVATOR TRACTION MACHINE

(HS306)

MOTOR SPECIFICATION

Frequency	50Hz or 60Hz
Insulation Class	"B","E" standard, "F" Available
Protection Grade	"IP44"standard,"IP54" Available
Heat Protection	Available With Thermostat or Thermistor
Electronic Regulation	"ACVV","VVVF"Available
Pole	4P, 6P, 4/16P, 6/24P
Power	19㎾(25HP),22㎾(30HP)

PERFORMANCE

Efficiency of Power Transfer:78%
Shaft Load:10,000㎏
Noise:65㏈(A)
Vibration:8㎛
Brake:Magnetic Brake
Non Asbestos
DC 110V,1.5A
Weight:1,500㎏(with motor)
Lubricating oil : ISO VG#320, 20ℓ

Hz	RATED SPEED	RATIO	SHEAVE DIA.	MOTOR SPEC.	RATED LOAD	ROPE	ROPING
60	30m/min	1/77	Ø640	18.5㎾×6p(22㎾)	2500(3000)㎏	Ø14×5/6 (pitch 22)	1:1
	45m/min	1/77	Ø640	18.5㎾×4p(22㎾)	2500(3000)㎏
	60m/min	1/67	Ø740		2000(2400)㎏
	90m/min	2/79	Ø640		1350(1600)㎏
	105m/min	2/79	Ø740		1150(1350)㎏
	120m/min	2/59	Ø640		1000(1200)㎏
50	30m/min	1/67	Ø640	18.5㎾×6p(22㎾)	2500(3000)㎏
	45m/min	1/67	Ø640	18.5㎾×4p(22㎾)	2500(3000)㎏
	60m/min	1/54	Ø700		2000(2400)㎏
	90m/min	2/79	Ø790		1350(1600)㎏
	105m/min	2/59	Ø700		1150(1350)㎏
	120m/min	2/59	Ø790		1000(1200)㎏
