엘리베이터엘리베이터 권상기

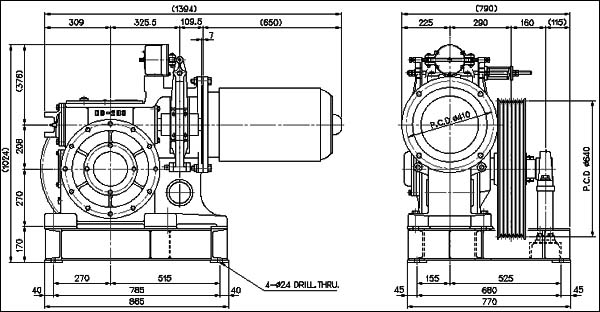

13-17 PERSONS ELEVATOR TRACTION MACHINE

(HS208B)

MOTOR SPECIFICATION

Frequency	50Hz or 60Hz
Insulation Class	"B","E" standard, "F" Available
Protection Grade	"IP44"standard,"IP54" Available
Heat Protection	Available With Thermostat or Thermistor
Electronic Regulation	"ACVV","VVVF" Available
Pole	4P, 6P, 4/16P, 6/24P
Power	15㎾(20HP)

PERFORMANCE

Efficiency of Power Transfer:78%
Shaft Load:6,500㎏
Noise:65㏈(A)
Vibration:8㎛
Brake:Magnetic Brake
Non Asbestos
DC 110V,1.5A
Weight:800㎏(with motor)
Lubricating oil:ISO VG#320,14ℓ

Hz	RATED SPEED	RATIO	SHEAVE DIA.	MOTOR SPEC.	RATED LOAD	ROPE	ROPING
60	30m/min	1/59	Ø500	15㎾×6p	2000㎏	Ø12×6 (pitch 19)	1:1
	45m/min	1/59	Ø500	15㎾×4p	1700㎏
	60m/min	1/56	Ø640		1500㎏
	90m/min	2/79			1150㎏
	105m/min	2/65			900㎏
	120m/min	2/59			800㎏
50	30m/min	1/56	Ø560	15㎾×6p	2000㎏
	45m/min	1/56		15㎾×4p	1700㎏
	60m/min	2/85			1500㎏
	90m/min	2/59	Ø600		1150㎏
	105m/min	2/59	Ø670		900㎏
	120m/min	2/41	Ø560		800㎏
