엘리베이터엘리베이터 권상기

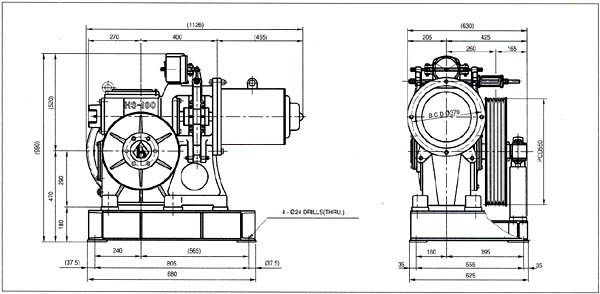

11-13 PERSONS ELEVATOR TRACTION MACHINE

(HS180G)

MOTOR SPECIFICATION

Frequency	50Hz or 60Hz
Insulation Class	"B","E" standard, "F" Available
Protection Grade	"IP21"standard,"IP54" Available
Heat Protection	Available With Thermostat or Thermistor
Electronic Regulation	"ACVV","VVVF"Available
Pole	4P, 6P, 4/16P, 6/24P
Power	11㎾(15HP)

PERFORMANCE

Efficiency of Power Transfer:78%
Shaft Load:5,000㎏
Noise:65㏈(A)
Vibration:8㎛
Brake:Magnetic Brake
Non Asbestos
DC 110V, 0.5A
Weight:650㎏(with motor)
Lubricating oil : ISO VG#320,10ℓ

Hz	RATED SPEED	RATIO	SHEAVE DIA.	MOTOR SPEC.	RATED LOAD	ROPE	ROPING
60	30m/min	1/59	Ø500	11㎾×6p	1500㎏	ø12×5/6 (pitch 19)	1:1
	45m/min	1/59	Ø500	11㎾×4p	1100㎏
	60m/min	1/51	Ø550		1000㎏
	90m/min	2/33	Ø550		750㎏
	105m/min		Ø630		650㎏
	120m/min		Ø700		550㎏
50	30m/min	1/51	Ø500	11㎾×6p	1500㎏
	45m/min	1/51	Ø500	11㎾×4p	1100㎏
	60m/min	1/41	Ø550		1000㎏
	90m/min	1/33	Ø630		750㎏
	105m/min	2/41	Ø480		650㎏
	120m/min	2/41	Ø550		550㎏
