엘리베이터엘리베이터 권상기

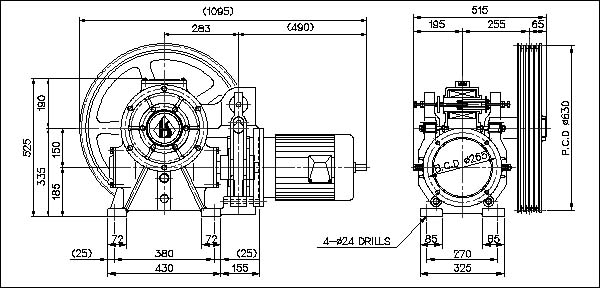

6-9 PERSONS ELEVATOR TRACTION MACHINE

(HS150A)

MOTOR SPECIFICATION

Frequency	50Hz or 60Hz
Insulation Class	"B","E" standard, "F" Available
Protection Grade	"IP44"standard,"IP54" Available
Heat Protection	Available With Thermostat or Thermistor
Electronic Regulation	"ACVV", "VVVF" Available
Pole	4P, 6P, 4/16P, 6/24P
Power	5.5㎾(7.3HP)

PERFORMANCE

Efficiency of Power Transfer:85%
Shaft Load:3,700㎏
Noise:58㏈(A)
Vibration:7㎛
Brake:Magnetic Brake
Non Asbestos
DC 110V, 1.5A
Weight:450㎏(with motor)
Lubricating oil : ISO VG#320, 7ℓ

Hz	RATED SPEED	RATIO	SHEAVE DIA.	MOTOR SPEC.	RATED LOAD	ROPE	ROPING
60	30m/min	1/58	Ø480	5.5㎾×6p	850㎏	ø12×3/4 (pitch 19)	1:1
	45m/min	1/58	Ø480	5.5㎾×4p	800㎏
	60m/min	1/49	Ø550		600㎏
	90m/min	2/59	Ø480		400㎏
	105m/min	2/59	Ø550		350㎏
	120m/min	2/49	Ø550		300㎏
50	30m/min	1/58	Ø550	5.5㎾×6p	850㎏
	45m/min	1/58	Ø550	5.5㎾×4p	800㎏
	60m/min	1/38	Ø500		600㎏
	90m/min	2/49	Ø480		400㎏
	105m/min	2/43	Ø500		350㎏
	120m/min	2/43	Ø550		300㎏
