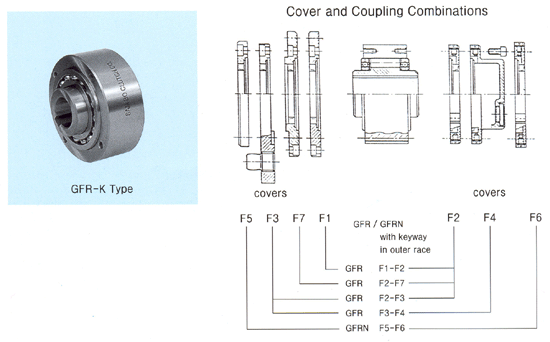

GFR-K Series

사 양

Dimensions-mm

Model	Max. Torque (kgf-m)	Max. Overrunning (rpm)		Stock Bore Size	d₁	d₂	d₃	Outer Race			L	ℓ	ℓ₁	r	No.of Tapped Hoies ×Dia×Pitch (N×d4×t)	Weight (kgf)
		Max. Overrunning (rpm)		Stock Bore Size				D (h7)	Keyway
		Inner Race	Outer Race	d(H.7)				D (h7)	b	t₁
GFR 12-K	2.5	3120	4720	12	20	42	51	62	4	2.5	40	20	27	0.5	3×Ø5.5	0.5
GFR 15-K	4	2800	4400	15	25	47	56	68	5	3	52	28	32	0.8	3×M5×8	0.8
GFR 20-K	8	2080	4080	20	30	55	64	75	6	3.5	57	34	39	0.8	4×M5×8	1.0
GFR 25-K	12	1600	3100	25	40	68	78	90	8	4	60	35	40	1.0	4×M6×10	1.5
GFR 30-K	22	1280	2780	30	45	75	87	100	8	4	68	43	48	1.5	6×M6×10	2.2
GFR 35-K	28	1170	2620	35	50	80	96	110	10	5	74	45	51	1.5	6×M6×12	3.0
GFR 40-K	46	850	2300	40	55	90	108	125	12	5	86	53	59	1.5	6×M8×14	4.6
GFR 45-K	65	740	2140	45	60	95	112	130	14	5.5	86	53	59	1.5	8×M8×14	4.7
GFR 50-K	100	580	1930	50	70	110	132	150	14	5.5	94	64	72	1.5	8×M8×14	7.2
GFR 55-K	125	550	1800	55	75	115	138	160	16	6	104	66	72	2.0	8×M10×16	8.6
GFR 60-K	180	530	1700	60	80	125	150	170	18	7	114	78	89	2.0	10×M10×16	10.5
GFR 70-K	250	500	1600	70	90	140	165	190	20	7.5	134	95	108	2.0	10×M10×16	13.5
GFR 80-K	400	450	1400	80	105	160	185	210	22	9	144	100	108	2.0	10×M10×16	18.2
GFR 90-K	675	380	1250	90	120	180	206	230	25	9	158	115	125	2.5	10×M12×20	28.5
GFR 100-K	890	350	1100	100	140	210	240	270	28	10	182	120	131	2.5	10×M16×24	42.5
GFR 130-K	1380	250	950	130	160	240	278	310	32	11	212	152	168	3	12×M16×24	65.0
GFR 150-K	2300	180	750	150	200	310	360	400	36	12	246	180	194	3.5	12×M20×32	138.0

특 징

1. 오일윤활 방식
2. 내경 키홈 치수는 DIN규격 DIN 6885 Sheet 1에 의거합니다.
3. GFR-K Series는 다양한 Cover들과 결합되어 사용될수 있습니다.
4. 외륜은 트랜스미션, 폴리, 기어 등과의 결합이 용이합니다.
