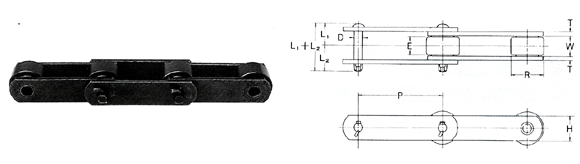

R 로울러형 체인

체인번호	피치 P	로울러		로울러 링크내폭 W	링크 플레이트		핀				평균 파단강도 (kg)	개략 중량 (kg/m)
		로울러			폭 H	두 께 T	핀경 D	C 핀
		직경 R	폭 E		폭 H	두 께 T	핀경 D	L1+L2	L1	L2
RF 03075-R RF 03100-R	75 100	31.8	15.5	16.1	22	3.2	7.95	38	18	20	3,000	2.7 2.3
RF 430-R	101.6	38.1	19	22.6	25.4	4.8 (5.0)	9.73	55	25.5	29.5	5,500	4.3
RF 05100-R RF 05150-R	100 150	40	19	22	32	4.5	11.3	53.5	24.5	29	7,000	5.0 4.1
RF 450-R	101.6	44.5	23	27	28.6	6.3 (6.0)	11.3	66	31	35	8,000	6.8
RF 08150-R	150	44.5	23	27	28.6	6.3 (6.0)	11.3	66	31	35	8,000	5.5
RF 650-R	152.4	50.8	26	30.2	38.1	6.3 (6.0)	11.3	69	32.5	36.5	8,000	7.7
RF 10100-R RF 10150-R	100 150	50.8	27	30	38.1	6.3 (6.0)	14.5	73.5	33.5	40	11,500	9.8 7.9
RF 214-R	101.6	44.5	27	31.6	38.1	7.9	15.9	84	39	45	13,000	10.4
RF 6205-R	152.4	57.2	32	37.1	44.5	7.9	15.9	89	41.5	47.5	19,000	12.1
RF 12200-R RF 12250-R	200 250	65	32	37.1	44.5	7.9	15.9	89	41.5	47.5	19.000	11.4 10.3
RF 212-R	152.4	69.9	32.5	37.1	50.8	9.5 (10.0)	19.1	97.5	45	52.5	25,000	17.1
RF 20200-R RF 20300-R	200 300	75	40	44	50.8	9.5 (10.0)	19.1	105	48.5	56.5	25,000	16.4 13.5
RF 17200-R RF 17250-R RF 17300-R	200 250 300	80	44	51.4	50.8	9.5 (10.0)	19.1	111.5	52	59.5	25,000	18.8 16.5 15.0
RF 25200-R RF 25300-R	200 300	85	44	49	63.5	9.5 (10.0)	22.2	113	52	61	32,000	22.9 18.5
RF 26250-R RF 26300-R RF 26450-R	250 300 450	100	50	57.2	63.5	9.5 (10.0)	22.2	121	56	65	32,000	25.3 22.3 18.0
RF 36300-R RF 36450-R RF 36600-R	250 300 450	125	56	66.7	76.2	12.7	25.4	145	68	77	48,500	39.0 30.7 26.9
RF 52300-R RF 52450-R RF 52600-R	300 450 600	140	65	77	76.2	16	31.8	175.5	82.5	93	51,000	48.8 37.5 32.9
RF 60300-R RF 60350-R RF 60400-R	300 350 500	140	68	77	90	12.7	35.0	160.5	77	83.5	51,000	52.4 47.2 43.8
RF 90400-R RF 90500-R	400 500	170	76	88	110	16	42.0	189.5	89.5	100	80,500	466.9 59.0
RF 120400-R RF 120600-R	400 600	200	87	100	130	19	50.0	218.5	105.5	113	113,000	105.7 83.3

주: 1) 링크플레이트 T의 (내)는 스텔레스 300씨리즈를 나타내고 ()가 업는것은 모두 동일합니다.
2) 로울러직경 및 개량중량의 ( )내는 M로울러행의 경우입니다.
