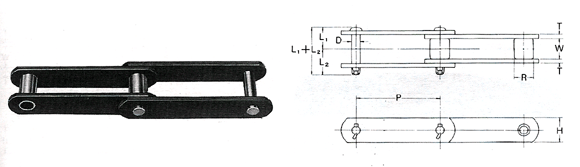

체인번호
|
피치
P
|
로울러
직경
R
|
로울러
링크내폭
W
|
링크 플레이트
|
핀
|
평균
파단강도
(kg)
|
개략
중량
(kg/m)
|
|
폭
H
|
두 께
T
|
핀경
D
|
C
핀 |
|
L1+L2
|
L1
|
L2
|
RF 03075-S
RF 03100-S |
75
100 |
15.9 |
16.1 |
22 |
3.2 |
7.95 |
38 |
18 |
20 |
3,000 |
1.9
1.7 |
| RF 430-S |
101.6 |
20.1 |
22.6 |
25.4 |
(4.8)
(5.0) |
9.73 |
55 |
25.5 |
29.5 |
5,500 |
3.0 |
RF 05075-S
RF 05100-S
RF 05150-S |
75
100
150 |
22.2 |
22 |
32 |
4.5 |
11.3 |
53.5 |
24.5 |
29 |
7,000 |
4.2
3.7
3.2 |
| RF 204-S |
66.27 |
22.2 |
27 |
28.6 |
6.3
(6.0) |
11.3 |
66 |
31 |
35 |
8,000 |
5.6 |
| RF 450-S |
101.6 |
22.2
(25.4) |
27 |
28.6 |
6.3
(6.0) |
11.3 |
66 |
31 |
35 |
8,000 |
4.6(4.8) |
| RF 08150-S |
150 |
22.2
(25.4) |
27 |
28.6 |
6.3
(6.0) |
11.3 |
69 |
31 |
35 |
8,000 |
4.0(4.2) |
| RF 650 |
152.4 |
25.8
(31.8) |
30.2 |
38.1 |
6.3
(6.0) |
11.3 |
69 |
32.5 |
40 |
8,000 |
6.0(4.2) |
RF 10100-S(M)
RF 10150-S(M) |
100
150 |
29.0
(31.8) |
30 |
38.1 |
6.3
(6.0) |
14.5 |
73.5 |
33.5 |
40 |
11,500 |
6.8(7.1)
5.9(6.1) |
| RF 205-S |
78.11 |
31.8 |
37.1 |
38.1 |
7.9 |
15.9 |
89 |
41.5 |
47.5 |
13,000 |
10.4 |
| RF 214-S(M) |
101.6 |
31.8(34.9) |
31.6 |
38.1 |
7.9 |
15.9 |
89 |
39 |
45 |
13,000 |
8.7(9.1) |
| RF 6205-S(M) |
152.4 |
34.9(38.1) |
37.1 |
44.5 |
7.9 |
15.9 |
89 |
41.5 |
47.5 |
19,000 |
9.3(9.6) |
RF 12200-S(M)
RF 12250-S(M) |
200
250 |
34.9
(38.1) |
37.1 |
44.5 |
7.9 |
15.9 |
89 |
41.5 |
47.5 |
19.000 |
8.4(8.7)
7.8(8.0) |
| RF 212-S(M) |
152.4 |
40.1
(44.5) |
37.1 |
50.8 |
9.5
(10.0) |
19.1 |
97.5 |
45 |
52.5 |
25,000 |
12.6(13.1) |
RF 17200-S(M)
RF 17250-S(M)
RF 17300-S(M) |
200
250
300 |
40.1
(44.5) |
51.4 |
50.8 |
9.5
(10.0) |
19.1 |
111.5 |
52 |
59.5 |
25,000 |
12.0(12.6)
11.1(11.6)
10.5(10.9) |
RF 26200-S(M)
RF 26250-S(M)
RF 26300-S(M)
RF 26450-S(M) |
200
250
300
450 |
44.5
(50.8) |
57.2 |
63.5 |
9.5
(10.0) |
22.2 |
121 |
56 |
65 |
32,000 |
16.0(17.0)
14.7(15.5)
13.8(14.5)
12.4(12.9) |
RF 36250-S(M)
RF 36300-S(M)
RF 36450-S(M)
RF 36600-S(M) |
250
300
450
600 |
50.8
(57.2) |
66.7 |
76.2 |
12.7 |
25.4 |
145 |
68 |
77 |
48,500 |
24.4(25.5)
22.9(23.8)
20.2(20.8)
19.0(19.5) |
RF 52300-S
RF 52450-S
RF 52600-S |
300
450
600 |
57.2 |
77 |
76.2 |
16 |
31.8 |
175.5 |
82.5 |
93 |
51,000 |
29.7
26.2
24.4 |
RF 60300-N
RF 60400-N
RF 60500-N |
350
400
500 |
70 |
77 |
90 |
12.7 |
35.0 |
160.5 |
77 |
83.5 |
51,000 |
31.0
18.8
27.7 |
RF 90350-N
RF 90400-N
RF 90500-N |
350
400
500 |
85 |
88 |
110 |
16 |
42.0 |
189.5 |
89.5 |
100 |
80,500 |
42.4
40.8
38.1 |
RF 120400-N
RF 120600-N |
400
600 |
100 |
100 |
130 |
19 |
50.0 |
218.5 |
105.5 |
113 |
113,000 |
63.9
55.4 |
|
