그리드 커플링 치수표

표준품 규격 (SAS-Type)

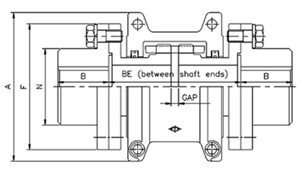

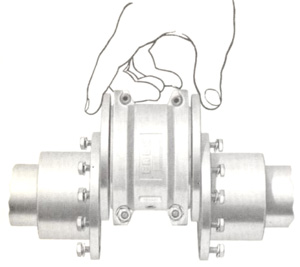

SAS (Full Space) type

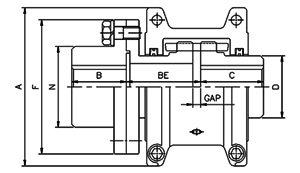

SFS (Halfl Space) type

Size	HP Per 100 (rpm)	Max Speed (rpm)	Basic torque (kg,cm)	Bore (mm)	Dimensions(mm)									Flange Bolt No.
				Max.	A	B	BE(SAS)		BE(SFS)		N	F	Gap
				Max.	A	B	Min.	Max.	Min.	Max.	N	F	Gap
20S	0.68	4500	486	36	101.6	35	89	203	45	102	52	86	5	4
30S	1.93	4500	1383	44	111.0	41	89	216	45	109	59	94	5	8
40S	3.22	4500	2304	57	117.5	54	89	216	45	109	78	113	5	8
50S	5.63	4500	4033	64	138.0	60	112	216	57	109	87	126	5	8
60S	8.85	4350	6337	79	150.5	73	127	330	64	166	103	145	5	8
70S	13	4125	9217	83	161.9	79	127	330	64	166	109	153	5	12
80S	27	3600	19010	95	194.0	89	184	406	93	204	122	178	5	12
90S	48	3600	34564	108	213.0	102	184	406	93	204	142	210	5	12
100S	81	2440	58183	127	250.0	90	203	406	103	205	171	251	6.5	12
110S	121	2250	86411	149	270.0	104	210	406	106	205	196	277	6.5	12
120S	177	2025	126736	165	308.0	119	246	406	125	205	225	319	9.5	12
130S	257	1800	184343	178	346.0	135	257	406	130	205	238	346	9.5	12
140S	370	1650	265993	203	384.0	152	267	406	135	205	266	386	9.5	12
150S	515	1500	368686	254	453.1	173	345	371	175	187	334	425	9.5	14
160S	724	1350	518465	279	501.4	186	356	406	180	205	366	457	9.5	14
170S	965	1225	691286	330	566.4	220	384	445	194	224	425	527	9.5	16
180S	1338	1100	958584	330	629.9	249	400	490	202	247	451	591	9.5	16
190S	1770	1050	1267358	362	675.6	276	411	530	207	267	508	660	9.5	18
200S	2413	900	1728216	381	756.9	30	445	575	224	289	530	711	9.5	18

표준품 규격 (SBW-Type)

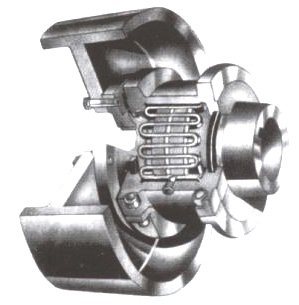

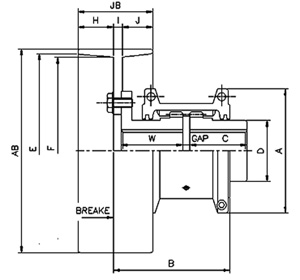

SBW (brake Wheel) type

Brake wheel Size(mm)		Size	Max,Brake Rating of CPLG(kg,cm)	Bore Dia. (mm)		Dimension (mm)
AB	JB	Size	Max,Brake Rating of CPLG(kg,cm)	Max.	Min.	A	C	D	E	F	H	I	J	Gap
		20S	110	30	12.7	102	48	39.6						3
		30S	359	36	12.7	111	48	49						3
160	80	40S	663	44	12.7	117	51	57	145	140	40	12	28	3
200	100	50S	1202	50	12.7	138	60	66	184	178	50	17	33	3
200	100	60S	2129	57	19.1	151	63	76	184	178	50	17	33	3
250	125	70S	3373	68	19.1	162	76	87	230	224	62.5	22	40.5	3
315	160	80S	6497	82	27.0	194	89	105	292	285	80	23	57	3
355	180	90S	11060	95	27.0	213	98	124	330	320	90	26	64	3
400	200	100S	19355	107	41.3	251	121	142	374	362	100	28	72	5
450	224	110S	29032	117	41.3	270	127	160	422	410	112	32	80	5
500	250	120S	44240	136	60.3	308	149	179	462	445	125	35	90	6
560	280	130S	66212	165	66.7	346	162	218	516	495	140	45	95	6
560	280	140S	89862	184	66.7	384	184	253	516	495	140	45	95	6

Cplg Size	Standard Brake Wheel
Cplg Size	Moter power (40% ED KW)	Breake Torque (kg, m)
2020S
2030S
2040S	2.2	5
2050S	5.5	10
2060S	5.5 7.5 11	10 14 21.2
2070S	15	30
2080S	30	53
2090S	37 45	63 80
2100S	45	132
2110S	75 90	180
2120S	110 132	335
2130S	160 200	400 475
2140S	160 200	400 475

표준품 규격 (SH-Type)

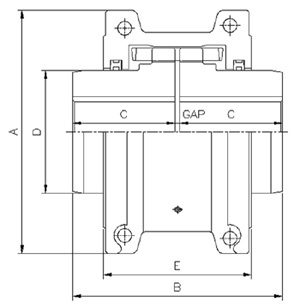

SH (Horizontal Split aluminum)

Size	HP Per 100 (rpm)	Max Speed (rpm)	Basic torque (kg,cm)	Bore (mm)	Dimensions(mm)					Gap(mm)			Cplg	Lube
Size	HP Per 100 (rpm)	Max Speed (rpm)	Basic torque (kg,cm)	Max	A	B	C	D	E	Min.	Normal	Max.	wt(kg)	wt(kg)
20S	0.68	4500	486	30	101.6	98.0	47.5	39.7	66.5	1.5	3	4.5	1.9	0.03
30S	1.93	4500	1383	36	111.0	98.0	47.5	49.2	68.3	1.5	3	4.5	2.6	0.03
40S	3.22	4500	2304	44	117.5	104.6	50.8	57.1	70.0	1.5	3	4.5	3.4	0.05
50S	5.63	4500	4033	50	138.0	123.6	60.3	66.7	79.5	1.5	3	4.5	5.4	0.05
60S	8.85	4350	6337	57	150.5	130.0	63.5	76.2	92.0	1.5	3	4.5	7.3	0.09
70S	13	4125	9217	68	161.9	155.4	76.2	87.3	95.0	1.5	3	4.5	10	0.11
80S	27	3600	19010	82	194.0	180.8	88.9	104.8	116.0	1.5	3	6	18	0.17
90S	48	3600	34564	95	213.0	199.8	98.4	123.8	122.0	1.5	3	6	25	0.25
100S	81	2440	58183	107	250.0	245.7	120.6	142.0	155.5	1.5	4.5	9.5	42	0.43
110S	121	2250	86411	117	270.0	258.5	127.0	160.3	161.5	1.5	4.5	9.5	54	0.51
120S	177	2025	126736	136	308.0	304.4	149.2	179.4	191.5	1.5	6	12.5	81	0.73
130S	257	1800	184343	165	346.0	329.8	161.9	217.5	195.0	1.5	6	12.5	121	0.91
140S	370	1650	265993	184	384.0	371.6	182.8	254.0	201.0	1.5	6	12.5	178	1.13
150S	515	1500	368686	203	453.1	371.8	182.9	269.2	271.3	1.5	6	12.5	234	1.95
160S	724	1350	518465	228	501.4	403.3	198.1	304.8	278.9	1.5	6	12.5	317	2.81
170S	965	1225	691286	279	566.4	437.8	215.9	355.6	304.3	1.5	6	12.5	448	3.49
180S	1338	1100	958584	311	629.9	483.6	238.8	393.7	321.1	1.5	6	12.5	619	3.76
190S	1770	1050	1267358	339	675.5	524.2	259.1	436.9	325.1	1.5	6	12.5	776	4.40
200S	2413	900	1728216	361	756.9	564.8	279.4	497.8	355.6	1.5	6	12.5	1057	5.62

표준품 규격 (SV-Type)

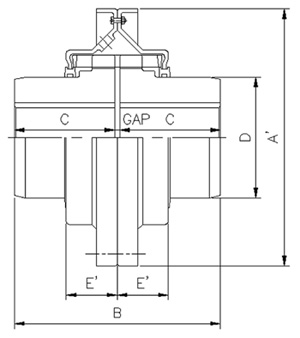

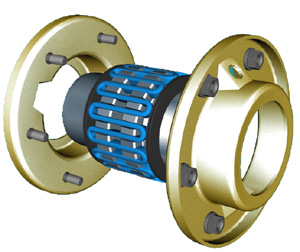

SV (Vertical Split steel cover)

Size	HP Per 100 (rpm)	Max Speed (rpm)	Basic torque (kg,cm)	Bore (mm)	Dimensions(mm)					Gap(mm)			Cplg	Lube
Size	HP Per 100 (rpm)	Max Speed (rpm)	Basic torque (kg,cm)	Max	A'	B	C	D	E'	Min.	Normal	Max.	wt(kg)	wt(kg)
20S	0.68	4500	486	30	111.1	98.0	47.5	39.7	24.2	1.5	3	4.5	1.9	0.03
30S	1.93	4500	1383	36	120.7	98.0	47.5	49.2	25.0	1.5	3	4.5	2.6	0.03
40S	3.22	4500	2304	44	128.5	104.6	50.8	57.1	25.7	1.5	3	4.5	3.4	0.05
50S	5.63	4500	4033	50	147.6	123.6	60.3	66.7	31.2	1.5	3	4.5	5.4	0.05
60S	8.85	4350	6337	57	162.0	130.0	63.5	76.2	32.2	1.5	3	4.5	7.3	0.09
70S	13	4125	9217	68	173.0	155.4	76.2	87.3	33.7	1.5	3	4.5	10	0.11
80S	27	3600	19010	82	200.0	180.8	88.9	104.8	44.2	1.5	3	6	18	0.17
90S	48	3600	34564	95	232.8	199.8	98.4	123.8	47.7	1.5	3	6	25	0.25
100S	81	2440	58183	107	266.7	245.7	120.6	142.0	60.0	1.5	4.5	9.5	42	0.43
110S	121	2250	86411	117	285.8	258.5	127.0	160.3	64.2	1.5	4.5	9.5	54	0.51
120S	177	2025	126736	136	319.0	304.4	149.2	179.4	73.4	1.5	6	12.5	81	0.73
130S	257	1800	184343	165	377.8	329.8	161.9	217.5	75.1	1.5	6	12.5	121	0.91
140S	370	1650	265993	184	416.0	371.6	182.8	254.0	78.2	1.5	6	12.5	178	1.13
150S	515	1500	368686	203	476.3	371.8	182.9	269.2	106.9	1.5	6	12.5	234	1.95
160S	724	1350	518465	228	533.4	403.3	198.1	304.8	114.3	1.5	6	12.5	317	2.81
170S	965	1225	691286	279	584.2	437.8	215.9	355.6	119.4	1.5	6	12.5	448	3.49
180S	1338	1100	958584	311	630.0	483.6	238.8	393.7	130.0	1.5	6	12.5	619	3.76
190S	1770	1050	1267358	339	685.0	524.2	259.1	436.9	135.0	1.5	6	12.5	776	4.40
200S	2413	900	1728216	361	737.0	564.8	279.4	497.8	145.0	1.5	6	12.5	1057	5.62
